Cell Lab 3N5 (99.95%) Chromium Pieces for Optical Coatings, Photovoltaics and Thin-Film Deposition with High Purity, Corrosion Resistance and Adhesion
Cell Lab 3N5 (99.95%) Chromium Pieces for Optical Coatings, Photovoltaics and Thin-Film Deposition with High Purity, Corrosion Resistance and Adhesion

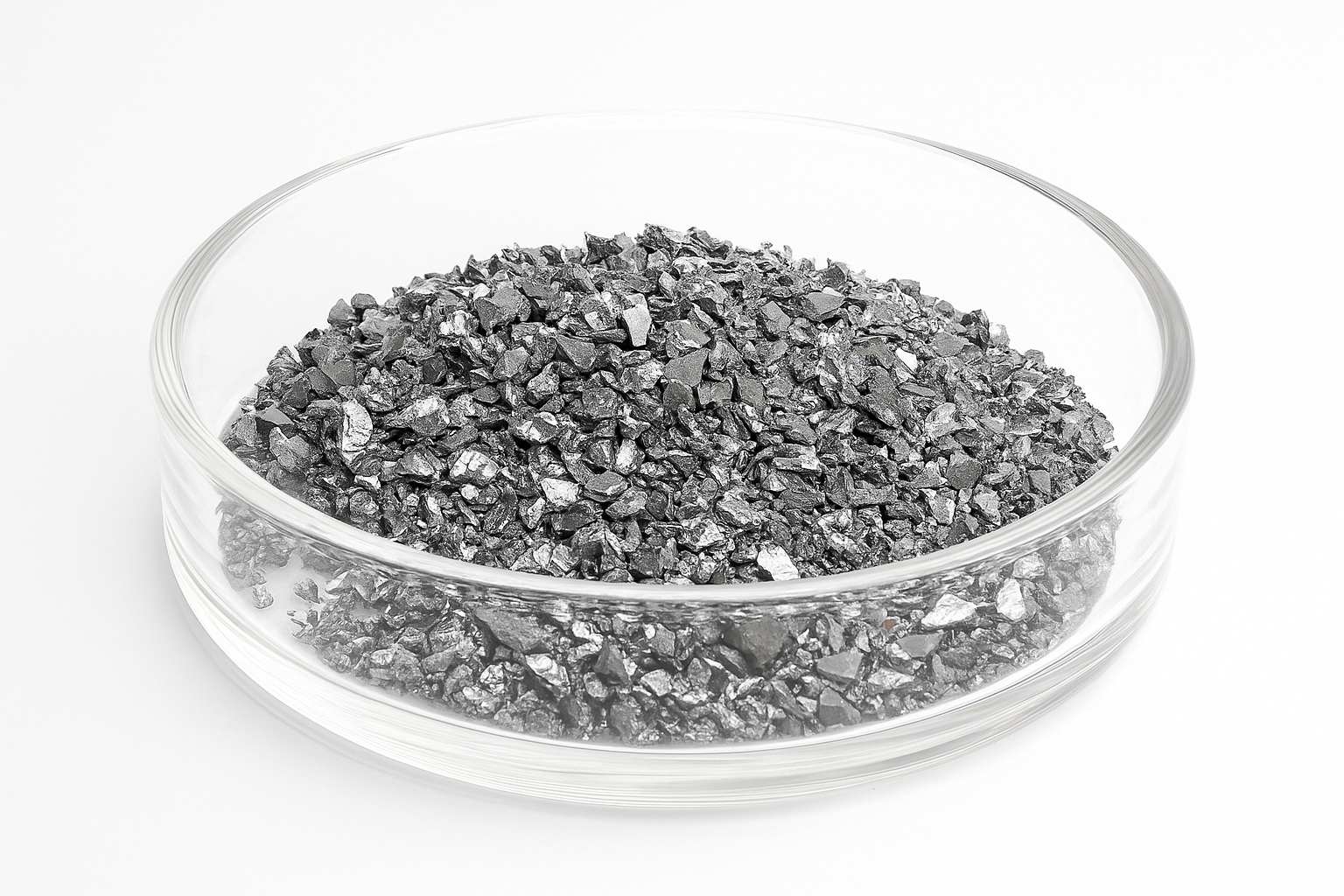

Cell Lab 3N5 (99.95%) Chromium (Cr) Pieces Evaporation Materials

Cell Lab 3N5 (99.95%) Chromium (Cr) Pieces Evaporation Materials High-Purity Chromium for Optical, Decorative, and Functional Thin-Film Coatings General Description Cell Lab 3N5 (99.95%) Chromium (Cr) Pieces are high-purity metallic materials designed for vacuum evaporation, optical coatings, and microelectronic fabrication. Chromium...
Vendor: Cell Lab
SKU: ST0115
Product type: Evaporation Materials
£129.00
£129.00
Size: 0.8~6mm
Weight: 500g
Subtotal: £129.00
Description
Description
x

Cell Lab 3N5 (99.95%) Chromium (Cr) Pieces Evaporation Materials

High-Purity Chromium for Optical, Decorative, and Functional Thin-Film Coatings

General Description

Cell Lab 3N5 (99.95%) Chromium (Cr) Pieces are high-purity metallic materials designed for vacuum evaporation, optical coatings, and microelectronic fabrication. Chromium is a silvery, lustrous, and hard metal known for its mirror-like finish, excellent corrosion resistance, and strong adhesion to a wide variety of substrates.

With a melting point of 1,857 °C and vapour pressure of 10⁻⁴ Torr at 1,157 °C, chromium is ideal for thermal and electron-beam evaporation in creating decorative, protective, and conductive films. It plays a critical role in automotive coatings, photovoltaic cell layers, and semiconductor applications due to its stability and reflectivity.

The element’s name originates from the Greek chroma, meaning “colour”, referring to its vibrantly coloured compounds widely used in pigments and finishes.

Key Features

  • High Purity (99.95%) – Guarantees minimal contamination for advanced research and industrial coatings.

  • Exceptional Corrosion Resistance – Forms stable, durable films with high adhesion to various substrates.

  • High Reflectivity & Lustre – Ideal for optical, mirror, and decorative coatings.

  • Thermally Stable – Maintains structure and conductivity under high vacuum and temperature.

  • Versatile Applications – Extensively used in automotive, photovoltaic, and semiconductor industries.

Technical Specifications

Parameter Specification
Material Type Chromium
Symbol Cr
Purity 99.95% (3N5)
Atomic Weight 51.9961
Atomic Number 24
Colour / Appearance Silvery, Metallic
Melting Point 1,857 °C
Thermal Conductivity 94 W/m·K
Coefficient of Thermal Expansion 4.9 × 10⁻⁶ /K
Theoretical Density 7.2 g/cm³
Z Ratio 0.305
Vapour Pressure (10⁻⁴ Torr) ~1,157 °C
Thermal Evaporation Techniques Boat: Cr-Plated W Rods; Coil: W; Basket: W
E-Beam Crucible Liner Material Graphite, Tungsten

Applications & Industries

  • Optical Coatings – Provides reflective and protective layers for mirrors, glass, and lenses.

  • Automotive Finishes – Used in wheels, trims, and bumpers for bright, corrosion-resistant surfaces.

  • Photovoltaic Cells – Serves as a transition or barrier layer in solar and semiconductor devices.

  • Battery Fabrication – Applied in thin-film electrode layers to enhance adhesion and durability.

  • Decorative & Functional Coatings – For jewellery, consumer electronics, and architectural finishes.

FAQ

Q1: Why is chromium preferred for decorative coatings?
Because of its mirror-like lustre, hardness, and oxidation resistance, chromium is the metal of choice for aesthetic and protective applications.

Q2: What evaporation technique is recommended for chromium?
Chromium performs well in both thermal and e-beam evaporation using W or Cr-plated tungsten boats.

Q3: Can chromium be co-evaporated with other metals?
Yes. It is often co-evaporated with nickel, titanium, or aluminium to modify reflectivity and adhesion.

Q4: Is chromium suitable for high-temperature vacuum processes?
Absolutely. Its high melting point and low vapour pressure make it ideal for stable thin-film deposition.
