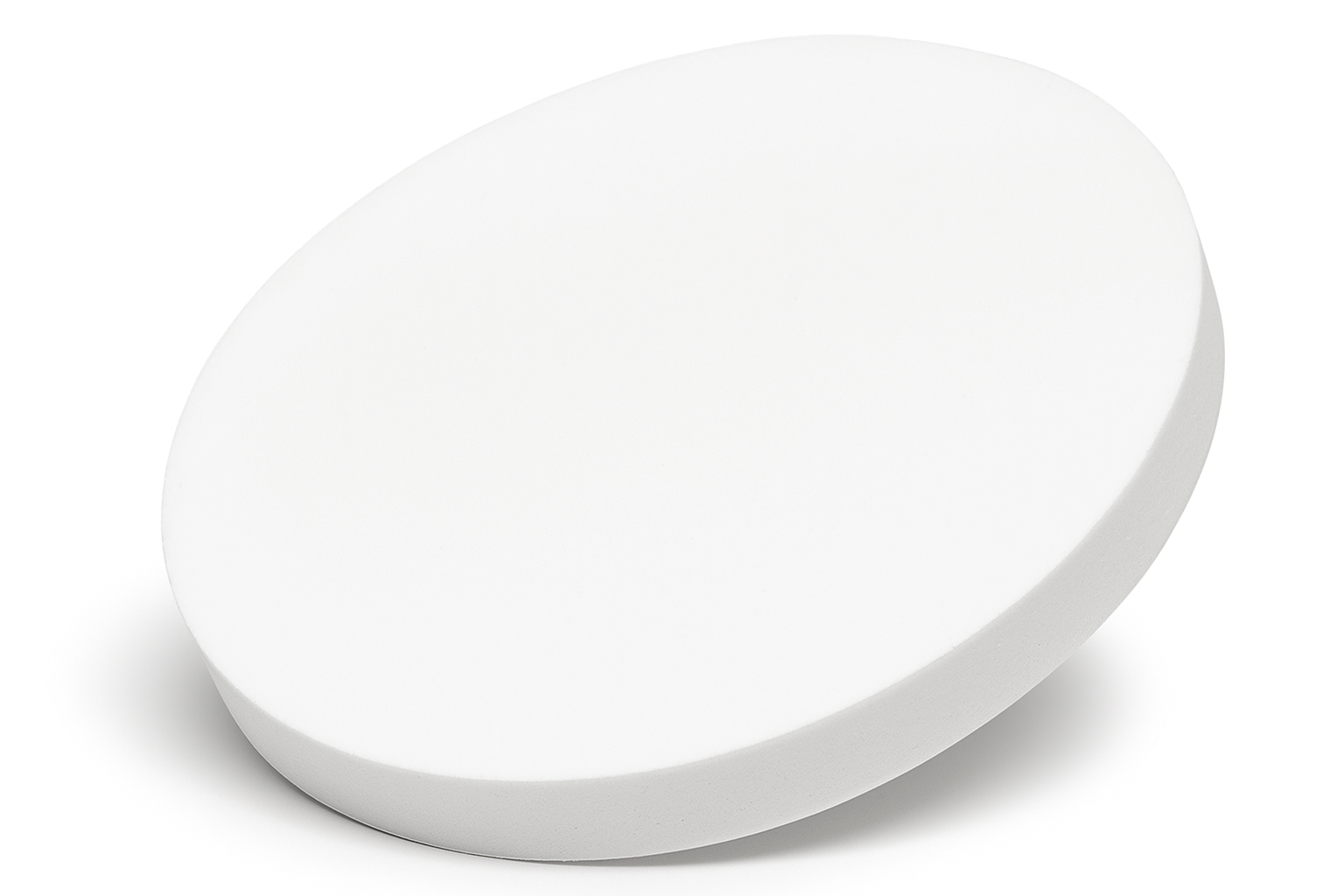

Cell Lab premium zirconium oxide (ZrO₂) sputtering target (99.9% purity) for ceramic thin films, optical coatings, sensors, and semiconductor fabrication.
Cell Lab premium zirconium oxide (ZrO₂) sputtering target (99.9% purity) for ceramic thin films, optical coatings, sensors, and semiconductor fabrication.

Cell Lab 3N (99.9%) Zirconium Oxide (ZrO₂) Sputtering Target

Cell Lab 3N (99.9%) Zirconium Oxide (ZrO₂) Sputtering Target High-Performance Ceramic Target for Thin-Film and Optical Coating Applications General Description Cell Lab 3N (99.9%) Zirconium Oxide (ZrO₂) Sputtering Target is a high-purity ceramic target designed for thin-film deposition, optical coatings, and...
Vendor: Cell Lab
SKU: ST0125
Product type: Sputtering Targets
£439.00
£439.00
Choose your size to determine pricing for each: 1.0" Dia. x 0.125" Thick
Purity: 99.90%
Subtotal: £439.00
Description
Description
x

Cell Lab 3N (99.9%) Zirconium Oxide (ZrO₂) Sputtering Target

High-Performance Ceramic Target for Thin-Film and Optical Coating Applications

General Description

Cell Lab 3N (99.9%) Zirconium Oxide (ZrO₂) Sputtering Target is a high-purity ceramic target designed for thin-film deposition, optical coatings, and semiconductor manufacturing. With its exceptional hardness, high melting point, and excellent chemical stability, zirconium oxide provides superior film adhesion and uniformity across various substrates.

It is widely used in electronic ceramics, optical filters, fuel cells, and surface engineering, where durability and purity are critical for performance.

Key Features

  • High Purity 99.9% (Higher Available) – Low impurity levels ensure clean and stable sputtering.

  • Excellent Thermal and Chemical Stability – Withstands temperatures up to 4,300 °C without degradation.

  • Superior Film Quality – Produces dense, adherent coatings with excellent optical transparency.

  • Customisable Dimensions – Available in disc, plate, or rectangular formats up to Ø200 mm.

  • Optional Backing Plate – Copper with indium bonding available upon request; not included by default.

Technical Specifications

Parameter Specification
Material Zirconium Oxide
Chemical Formula ZrO₂
CAS Number 1314-23-4
Purity 99.9% (Higher purities available upon request)
Molar Mass 123.22 g/mol
Density 5.68 g/cm³
Melting Point 4,300 °C
Shape Options Discs, Rectangle, Step, Plate, Sheet, Rod, Custom-made
Available Dimensions Max Ø200 mm, Length 300 mm, Width 200 mm, Thickness 1 mm or custom
Backing Plate Option Copper with Indium Bonding (optional, not included by default)

Typical Impurity Analysis (for 99.9% ZrO₂ by ICP–AES)

Element Concentration (ppm)
Fe 203
Si 142
Ca 40
Mg 12
W 46
Al 60
Cu 69

Applications & Industries

  • Optical Coatings – Ideal for anti-reflective and dielectric mirror coatings.

  • Semiconductors – Used in insulating layers and diffusion barriers.

  • Energy & Fuel Cells – Functions as an electrolyte or barrier layer in SOFC systems.

  • Protective Coatings – Enhances wear resistance in aerospace and engineering components.

  • Research & Development – Widely applied in material science and surface engineering studies.

FAQ

Q1: Is the copper backing plate included in the standard product?
No. The Cu backing plate with indium bonding is optional and must be ordered separately.

Q2: Can higher purities than 99.9% be supplied?
Yes. Higher purities (up to 99.999%) are available upon request.

Q3: What shapes and sizes can be customised?
Cell Lab can fabricate discs, plates, and rectangles up to Ø200 mm or 300 mm in length, depending on system requirements.

Q4: Is this target compatible with DC or RF sputtering?
Yes. It is suitable for both DC and RF magnetron sputtering systems.
