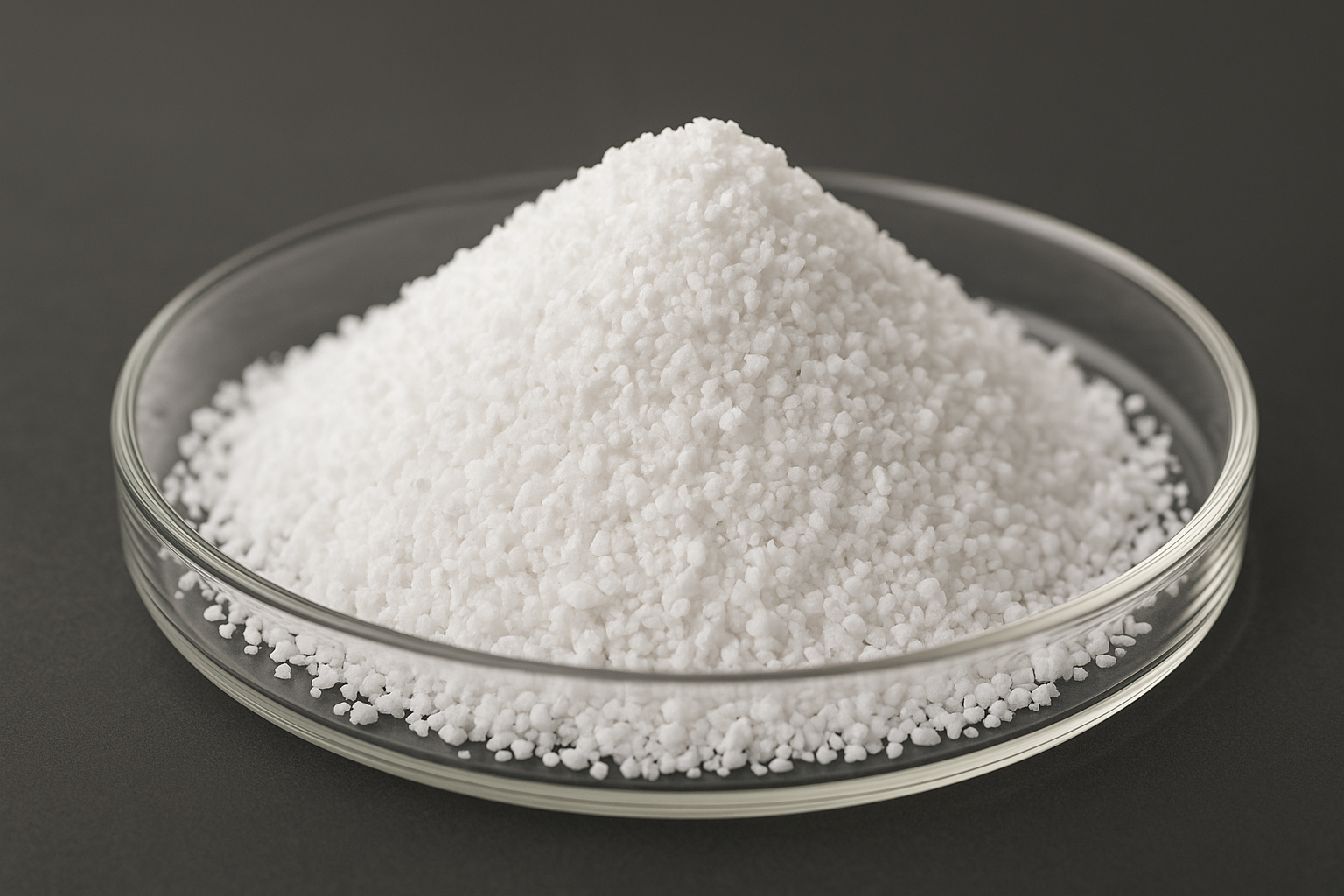

Cell Lab 3N (99.9%) Magnesium Aluminate (MgAl₂O₄) Pieces Evaporation Materials [3–12 mm]

Cell Lab 3N (99.9%) Magnesium Aluminate (MgAl₂O₄) Pieces Evaporation Materials [3–12 mm] High-Strength Spinel Material for Optical Coatings, Refractory, and Battery Research General Description Cell Lab 3N (99.9%) Magnesium Aluminate (MgAl₂O₄) Pieces, also known as spinel (MAS), are synthetic cubic...
Vendor: Cell Lab
SKU: ST0086
Product type: Evaporation Materials
£209.00
£209.00
Size: 3-12mm pieces
Weight: 100g
Subtotal: £209.00
Cell Lab 3N (99.9%) Magnesium Aluminate Pieces — high-purity MgAl₂O₄ spinel material for optical coatings, refractories, and battery applications. Exceptional thermal resistance, transparency, and corrosion stability for precision thin-film deposition.

Cell Lab 3N (99.9%) Magnesium Aluminate (MgAl₂O₄) Pieces Evaporation Materials [3–12 mm]

£209.00
Cell Lab 3N (99.9%) Magnesium Aluminate Pieces — high-purity MgAl₂O₄ spinel material for optical coatings, refractories, and battery applications. Exceptional thermal resistance, transparency, and corrosion stability for precision thin-film deposition.

Cell Lab 3N (99.9%) Magnesium Aluminate (MgAl₂O₄) Pieces Evaporation Materials [3–12 mm]

£209.00
Size: 3-12mm pieces
Weight: 100g
Description
Description
x

Cell Lab 3N (99.9%) Magnesium Aluminate (MgAl₂O₄) Pieces Evaporation Materials [3–12 mm]

High-Strength Spinel Material for Optical Coatings, Refractory, and Battery Research

General Description

Cell Lab 3N (99.9%) Magnesium Aluminate (MgAl₂O₄) Pieces, also known as spinel (MAS), are synthetic cubic crystal materials combining high strength, exceptional thermal stability, and chemical inertness. With a melting point of 2,135 °C and excellent shock and corrosion resistance, MgAl₂O₄ is widely used in transparent optical windows, laser domes, refractory linings, and high-temperature furnaces.

Due to its low thermal expansion and high optical transmission (0.2–8 µm), MgAl₂O₄ spinel is also ideal for infrared optics, sapphire fibre coatings, and lithium battery separators. When evaporated, it provides protective and functional coatings that enhance surface durability and oxidation resistance in metals and ceramics.

Key Features

  • High Purity (99.9%) – Ensures minimal contamination for precise thin-film applications.

  • Exceptional Mechanical & Thermal Strength – Operates reliably under extreme heat and stress.

  • High Optical Transparency – Transmits effectively across visible and infrared wavelengths.

  • Superior Corrosion & Shock Resistance – Suitable for harsh industrial and high-power optical environments.

  • Multi-Industry Applications – Used across optics, metallurgy, energy research, and defence sectors.

Technical Specifications

Parameter Specification
Name Magnesium Aluminate
Chemical Formula MgAl₂O₄
CAS Number 12068-51-8
Molecular Weight 142.27 g/mol
Purity 99.9% (3N)
Appearance White
Thermal Conductivity (bulk) 0.147–0.154 W/cm·K
Melting Point 2,135 °C
Density (Bulk) 3.64 g/cm³
Thermal Expansion Coefficient 9.17 × 10⁻⁶ /°C
Specific Heat 0.29
Optical Transmission Range (Visible + IR) 0.2–8 µm
Refractive Index 1.72
E-Beam Compatibility Excellent
Available Particle Size 3–12 mm (customisable)

Applications & Industries

  • Optical & IR Windows – Used for transparent, high-strength windows and sensor domes.

  • Refractory & Furnace Linings – Ensures long-term stability in high-temperature operations.

  • Battery & Energy Materials – Acts as protective coating or separator layer in Li-ion systems.

  • Metal & Alloy Coatings – Enhances corrosion resistance and surface stability at high temperature.

  • Defence & Aerospace Materials – Applied in armours, optical domes, and laser optics.

FAQ

Q1: Why is MgAl₂O₄ preferred over Al₂O₃ for coatings?
MgAl₂O₄ offers better thermal shock resistance and a lower thermal expansion coefficient, making it superior for applications involving rapid temperature changes.

Q2: Can it be used for optical or IR thin-film coatings?
Yes. Its high optical transmission and durability make it ideal for antireflective and protective optical coatings.

Q3: Is MgAl₂O₄ suitable for E-beam evaporation?
Yes, it performs well under E-beam or thermal evaporation, provided temperature and rate are precisely controlled.

Q4: Does Cell Lab provide custom purities or quantities?
Yes. Purity, granule size, and packaging can be tailored to specific R&D or production requirements.
