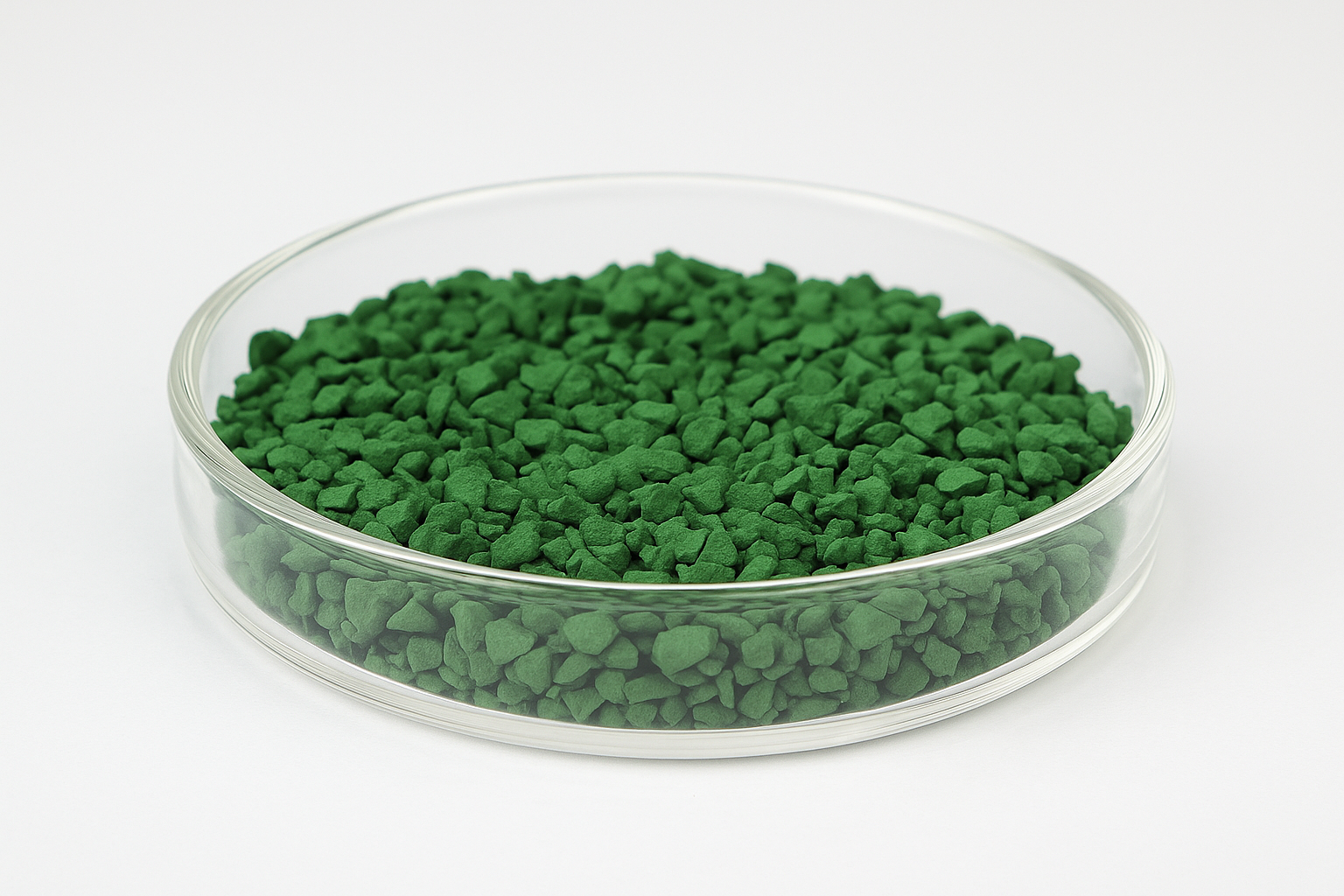

Cell Lab 3N (99.9%) Chromium Oxide (Cr₂O₃) Pieces Evaporation Materials

High-Purity Chromium Oxide for Optical, Pigment, and Thin-Film Applications

General Description

Cell Lab 3N (99.9%) Chromium Oxide (Cr₂O₃) is a green crystalline compound with a corundum-type structure, where chromium occupies two-thirds of the octahedral sites in a hexagonal close-packed array of oxide anions. Known for its hardness (Mohs 8–8.5), chemical stability, and antiferromagnetic properties (Néel temperature 307 K), Cr₂O₃ serves as an essential material in pigments, polishing compounds, and thin-film coatings.

Its high melting point (2,266 °C) and excellent thermal and chemical resistance make it a versatile material for vacuum evaporation processes, optical coatings, and protective ceramic layers.

Key Features

  • High Purity (99.9%) – Ensures precise performance in evaporation and coating processes.

  • Exceptional Hardness – Mohs 8–8.5; ideal for abrasion-resistant and durable coatings.

  • Thermal & Chemical Stability – Withstands extreme temperatures and reactive environments.

  • Vivid Green Pigment – Used extensively in high-performance pigments and ceramics.

  • Vacuum Evaporation Ready – Suitable for deposition via tungsten or molybdenum boats.

Technical Specifications

Parameter Specification
Material Chromium Oxide
Chemical Formula Cr₂O₃
CAS Number 1308-38-9
Molar Mass 151.99 g/mol
Purity >99.9% (3N)
Appearance Green, Crystalline Solid
Density 5.22 g/cm³
Melting Point 2,266 °C
Magnetic Behaviour Antiferromagnetic (Néel Temperature 307 K)
Mohs Hardness 8–8.5
Thermal Evaporation Techniques Boat: W, Mo; Basket: W
E-Beam Crucible Liner Material Graphite, Tungsten

Applications & Industries

  • Optical Coatings – Used in anti-reflective and infrared absorption layers.

  • Pigment & Ceramic Production – Provides durable, vivid green colouration for paints, enamels, and glass.

  • Polishing Compounds – Commonly used in fine surface finishing and metal polishing.

  • Protective Coatings – Enhances oxidation and wear resistance for metallic components.

  • Research & Development – Suitable for thin-film, magnetic, and optical material studies.

FAQ

Q1: Is Cr₂O₃ suitable for high-temperature vacuum deposition?
Yes. Its high melting point and low volatility make it well-suited for vacuum or e-beam evaporation.

Q2: What are the common crucible materials for deposition?
Tungsten (W) and Molybdenum (Mo) boats or baskets are recommended for stable heating.

Q3: Can Chromium Oxide be used in optical coatings?
Yes. It provides durable, heat-resistant green coatings with optical absorption properties.

Q4: Is custom packaging available for research or industrial quantities?
Yes. Cell Lab offers custom sizes and quantities upon request.
