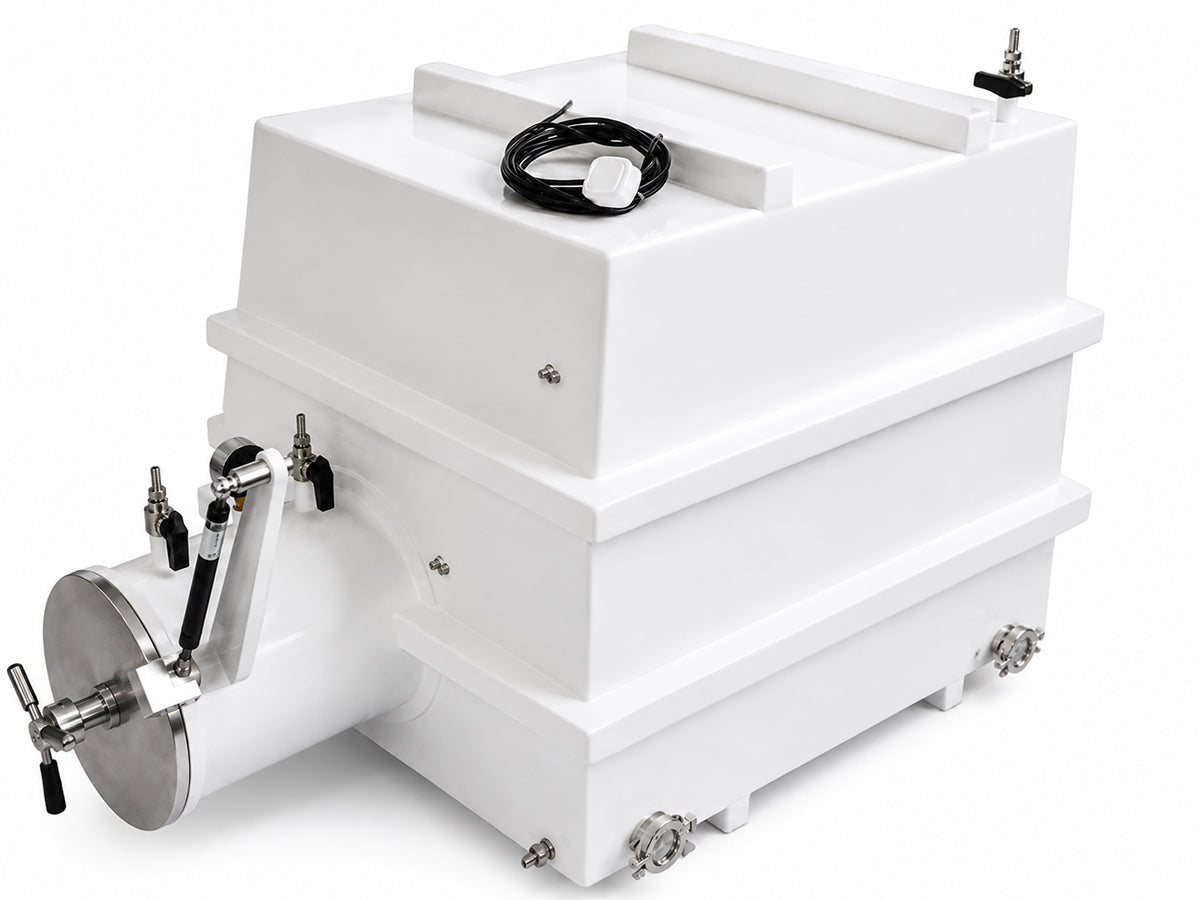

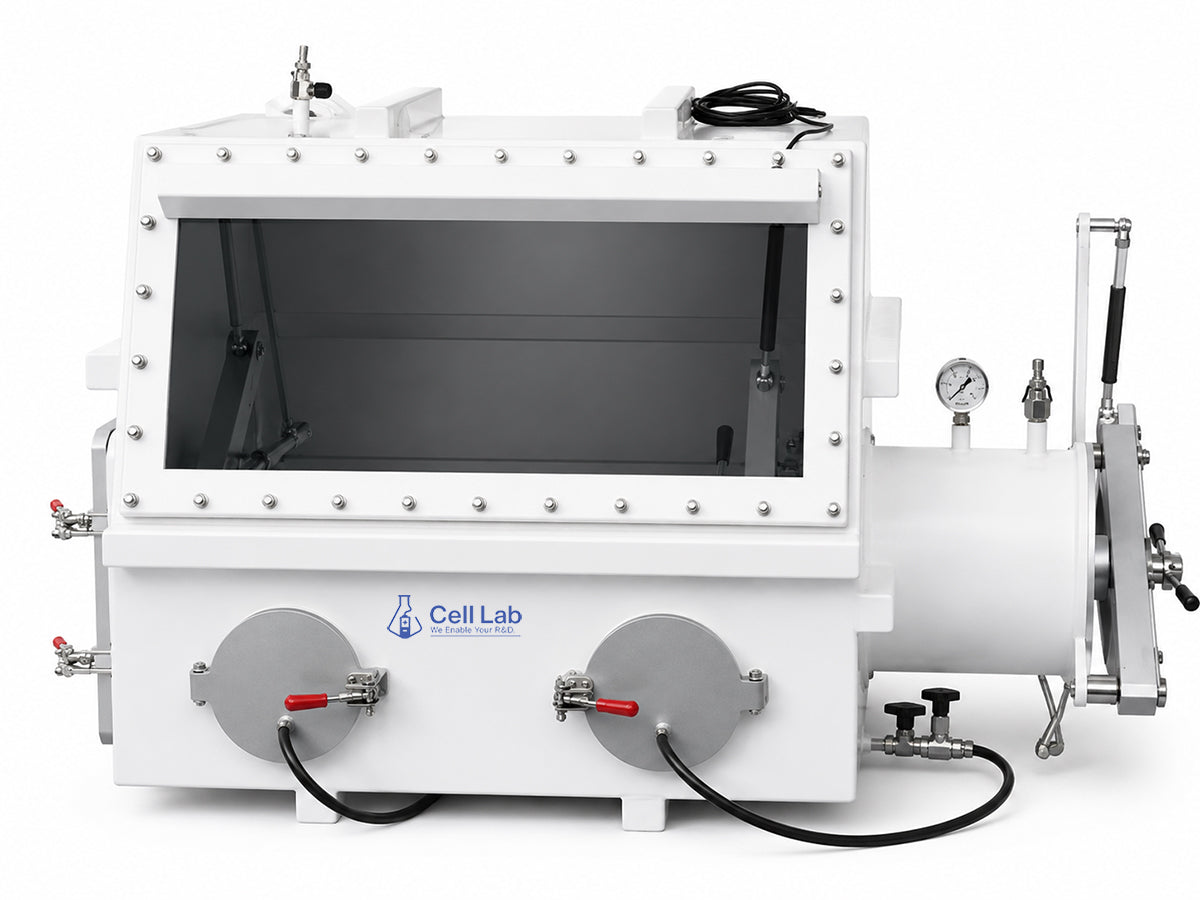

Cell Lab 354L Economy Compact Stainless Steel Glove Box

Cell Lab 354L Economy Compact Stainless Steel Glove Box [Antechamber Included]

Compact Inert Atmosphere Workstation for Moisture- and Oxygen-Sensitive Materials

General Description

The Cell Lab 354L Economy Compact Stainless Steel Glove Box is a cost-effective inert atmosphere workstation designed for handling air-sensitive materials under controlled environments. The system continuously fills the chamber with high-purity inert gas while circulating and removing oxygen, moisture, and other active contaminants to protect sensitive samples during processing and storage.

Constructed from SUS304 stainless steel, the glove box features a 354L main vacuum chamber, an integrated vacuum antechamber, tempered observation window, glove ports, internal lighting system, and multiple KF vacuum interfaces for accessory integration. The compact footprint makes it suitable for universities, battery research laboratories, semiconductor development, material science research, and oxygen-sensitive chemical handling applications.

Key Features

• Integrated Vacuum Main Chamber and Antechamber: The system includes both a primary working chamber and an independent vacuum transfer chamber for efficient sample transfer without exposing the main chamber atmosphere to ambient air.
• SUS304 Stainless Steel Construction: Manufactured entirely from corrosion-resistant SUS304 stainless steel to ensure long service life and excellent chemical compatibility.
• Designed for Oxygen and Moisture Sensitive Materials: The glove box removes oxygen, water vapour and reactive gases, making it suitable for lithium battery materials, metal powders and air-sensitive chemicals.
• Large Transparent Observation Window: A removable 10 mm tempered glass viewing window provides excellent visibility and operator safety during experimental procedures.
• Vacuum Antechamber for Sample Transfer: The integrated transfer chamber minimizes inert gas consumption while improving operational efficiency.
• Expandable Laboratory Platform: Dual KF25 ports allow connection of additional vacuum equipment, purification systems or analytical instruments.

Technical Specifications

Applications

Battery Research and Development

• Lithium-ion battery assembly
• Solid-state battery research
• Sodium-ion battery development
• Electrolyte preparation

Materials Science

• Metal powder handling
• Air-sensitive ceramic processing
• Nanomaterial preparation
• Catalyst synthesis

Semiconductor Industry

• Sensitive component handling
• Thin-film processing
• Electronic material preparation

Chemical Research

• Organometallic synthesis
• Moisture-sensitive reagent handling
• Inert atmosphere reactions

FAQ

Q1: What gases can be used with this glove box?

The glove box is typically operated using argon or nitrogen as the inert atmosphere gas.

Q2: Does the system include an antechamber?

Yes. The glove box includes an integrated vacuum antechamber for sample transfer operations.

Q3: What vacuum level can be achieved?

Both the main chamber and antechamber support vacuum levels up to -0.1 MPa.

Q4: Can additional equipment be connected?

Yes. Two standard KF25 ports are provided for optional vacuum and analytical equipment integration.
