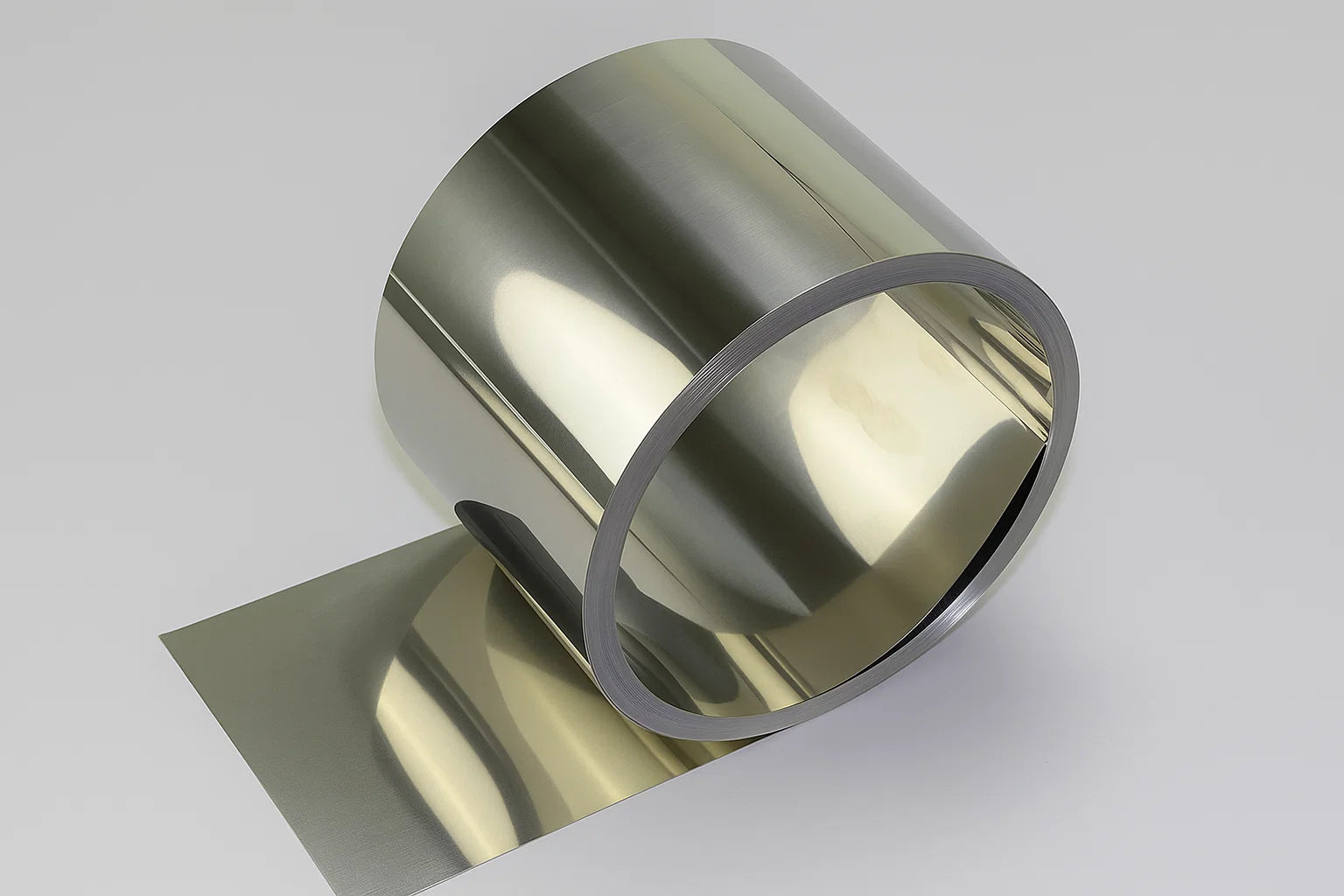

Cell Lab 316L stainless steel foil (4000 × 300 × 0.1 mm) is a high-purity battery substrate for thin-film deposition and electrode fabrication, offering superior strength and corrosion resistance.
Cell Lab 316L stainless steel foil (4000 × 300 × 0.1 mm) is a high-purity battery substrate for thin-film deposition and electrode fabrication, offering superior strength and corrosion resistance.

Cell Lab 316L Stainless Steel Foil [Conductive Electrode Substrate for Battery Research, Thin-Film Deposition & Catalysis]

Cell Lab 316L Stainless Steel Foil [Conductive Electrode Substrate for Battery Research, Thin-Film Deposition & Catalysis] High-purity stainless steel foil for advanced electrochemical and thin-film applications The Cell Lab 316L Stainless Steel Foil is a precision-engineered conductive material designed for...
Vendor: Cell Lab
SKU: CL0083
Product type: Battery Consumables
£139.80
£139.80
Subtotal: £139.80
Description
Description
x

Cell Lab 316L Stainless Steel Foil [Conductive Electrode Substrate for Battery Research, Thin-Film Deposition & Catalysis]

High-purity stainless steel foil for advanced electrochemical and thin-film applications

The Cell Lab 316L Stainless Steel Foil is a precision-engineered conductive material designed for high-performance applications in battery research, thin-film deposition, catalysis, and electronic component manufacturing. Its excellent conductivity, corrosion resistance, and dimensional precision make it ideal for use as an electrode substrate, current collector, or support layer in laboratory and industrial environments.

Manufactured from high-purity 316L stainless steel, this foil exhibits superior tensile strength and processability under thermal and vacuum conditions. It ensures reliable performance in electrode coating, sputtering, and electrochemical studies requiring stable, inert metal substrates.

Key Features

  • Exceptional Conductivity & Corrosion Resistance – Provides stable electrical contact and long-term chemical durability.

  • Ideal for Electrochemical Research – Commonly used as an electrode substrate in lithium-ion and solid-state battery development.

  • High Mechanical Strength – Offers >780 N/mm² tensile strength and >470 N/mm² yield strength for dimensional stability.

  • Precision Manufacturing – Tight thickness control and smooth surface for vacuum or thin-film processing.

  • Versatile Applications – Suitable for catalysis, electrolysis, and advanced materials R&D.

Technical Specifications:

Material Stainless Steel 316L
Dimensions (mm) 4000 × 80 (customisable)
Thickness 0.01 mm (customisable)
Yield Strength > 470 N/mm²
Tensile Strength > 780 N/mm²
Elongation > 6%
Hardness 400 HV
Chemical Composition (%) C ~0.025, Mn ~1.26, Si ~0.8, S ~0.003, P ~0.034, Cr ~17.63, Ni ~14.04, Mo ~2.4, Cu ~1.05, Sn ~0.047
Packaging Per roll



Applications & Industries

  • Lithium-ion and solid-state battery electrode substrates

  • Thin-film and sputter deposition systems

  • Catalyst and electrolysis support materials

  • Electronic connectors, sensors and membranes

  • Advanced material science and R&D laboratories

FAQ

Q1: Why is 316L stainless steel preferred for energy research applications?
A1: 316L offers high corrosion resistance, conductivity and thermal stability, making it ideal for electrochemical and vacuum systems.

Q2: Can this foil be used as a current collector?
A2: Yes. It’s widely applied as a conductive substrate or current collector in experimental cell configurations.

Q3: Is custom cutting available?
A3: Yes. Dimensions, thickness and surface finish can be tailored to specific research or production requirements.

Q4: How does it perform under vacuum deposition?
A4: Its smooth, dense surface allows uniform thin-film coating and stable adhesion under vacuum conditions.

Q5: How should it be stored and handled?
A5: Store in a dry, dust-free environment below 40 °C; handle with gloves to avoid surface contamination.
