xCell Lab 30L Vacuum Planetary Mixer [For Pilot-Scale Slurry Mixing | Industrial Vacuum Dispersion System]
High-capacity vacuum planetary mixer for uniform, bubble-free slurry preparation in lithium battery R&D and pilot production

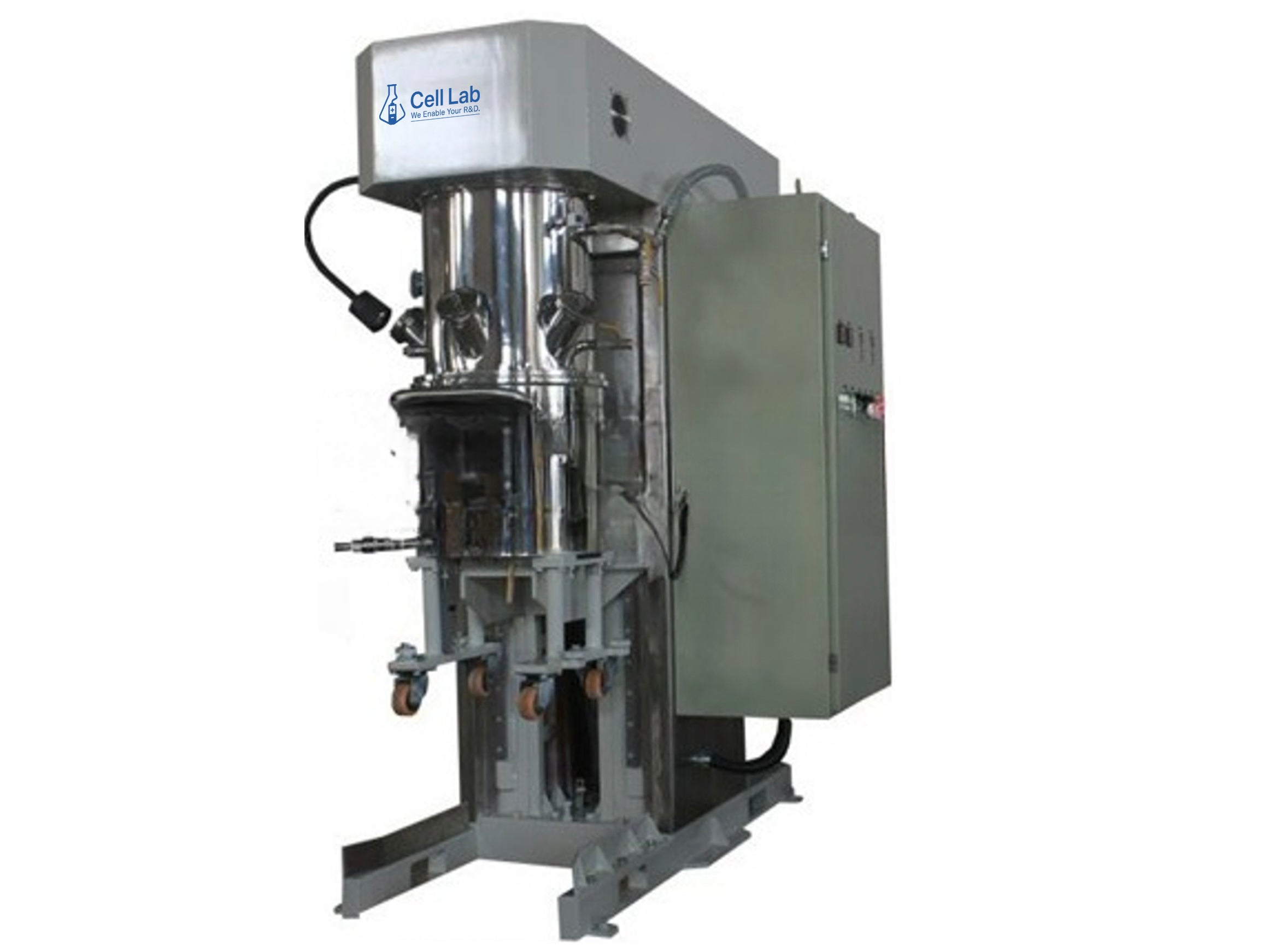

The Cell Lab 30L Vacuum Planetary Mixer is a high-performance dual-axis mixing system designed for large-volume slurry preparation under vacuum conditions. Combining planetary rotation and revolution, it ensures exceptional dispersion uniformity and bubble-free results for lithium-ion battery electrodes, phosphors, ceramics, and other advanced materials.
Built with a robust 304 stainless steel chamber, independent dual-motor drives, and a PLC touchscreen control interface, this system provides precise control over speed, temperature, and vacuum level. A circulating water jacket allows heating, cooling, or insulation within a -10 °C to 120 °C range, making it ideal for pilot-scale battery R&D and material synthesis.
Key Features
-
High-Efficiency Dual-Axis Mixing:
Planetary and rotational motion deliver superior kneading and shearing, ensuring consistent slurry uniformity and dispersion. -
30L Pilot-Scale Working Capacity:
Effective 15–30 L working volume within a 45 L barrel, optimised for medium-scale R&D or pre-production processes. -
Vacuum Mixing with Temperature Control:
Integrated –0.098 MPa vacuum chamber and water-jacketed design support heating/cooling from –10 °C to 120 °C. -
Independent Mixing & Dispersion Drives:
Dual 4 kW motors enable adjustable impeller (8–83 rpm) and disperser (540–5400 rpm) speeds for flexible operation. -
Durable Stainless Steel Construction:
Fabricated from SUS 304, featuring ports for vacuum, exhaust, liquid feed, and a digital vacuum gauge with viewing window.
| Specification | Details |
|---|---|
| Working Capacity | 30L (Customisable) |
| Total Volume | 45L |
| Vacuum Degree | -0.098MPa |
| Voltage | 380V / 50Hz / 3 Phase |
| Total Power | >10kW |
| Barrel Material | 304 Stainless Steel |
| Barrel Inner Diameter / Depth | 400mm / 360mm |
| Temperature Jacket | Circulating water jacket (G1/2", ≤0.4MPa) |
| Operating Temp. Range | -10°C to 120°C |
| Mixing Speed | 8–83rpm |
| Dispersing Speed | 540–5400rpm |
| Mixing Power / Dispersion Power | 4kW / 4kW |
| Mixing Blade Diameter | 223mm |
| Dispersing Blade Diameter | 80mm |
| Impellers / Dispersers | 2 pcs / 2 pcs |
| Dimensions (L×W×H) | 1770 × 1040 × 2150mm |
| Weight | 1200kg |
| Movement | Castor wheels |
| Warranty | One year limited warranty with lifetime support |
Note: Optional vacuum pump, temperature control units, and customised container volumes (10 L – 50 L) are available upon request.
Applications & Industries
-
Lithium-ion and solid-state battery slurry preparation
-
Cathode/anode material dispersion and mixing
-
Ceramic, phosphor, and composite paste formulation
-
Pilot-scale electrode manufacturing and R&D
-
High-viscosity material blending under vacuum
FAQ
Q1: What materials is this mixer suitable for?
It is ideal for lithium battery slurries (LFP, NCM, Si–C), ceramic suspensions, and viscous compounds requiring vacuum dispersion.
Q2: Does it include a vacuum pump?
A compatible vacuum pump is optional and can be supplied with the system.
Q3: What are the benefits of the dual-motor design?
Independent motors allow precise control of rotation and dispersion, improving homogeneity and preventing material stratification.
Q4: Can the jacket system provide both heating and cooling?
Yes. It supports thermal circulation between –10 °C and 120 °C for optimal process temperature control.
Q5: Is the system suitable for industrial pilot-scale use?
Absolutely. The 30 L model bridges the gap between laboratory R&D and small-scale production, ensuring scalability and consistency.
