Cell Lab 300 mm Edge Folding Machine [For Pouch Cell Assembly]

Cell Lab 300 mm Edge Folding Machine [For Pouch Cell Assembly]

Precision edge-folding system for pouch-cell safety and consistency

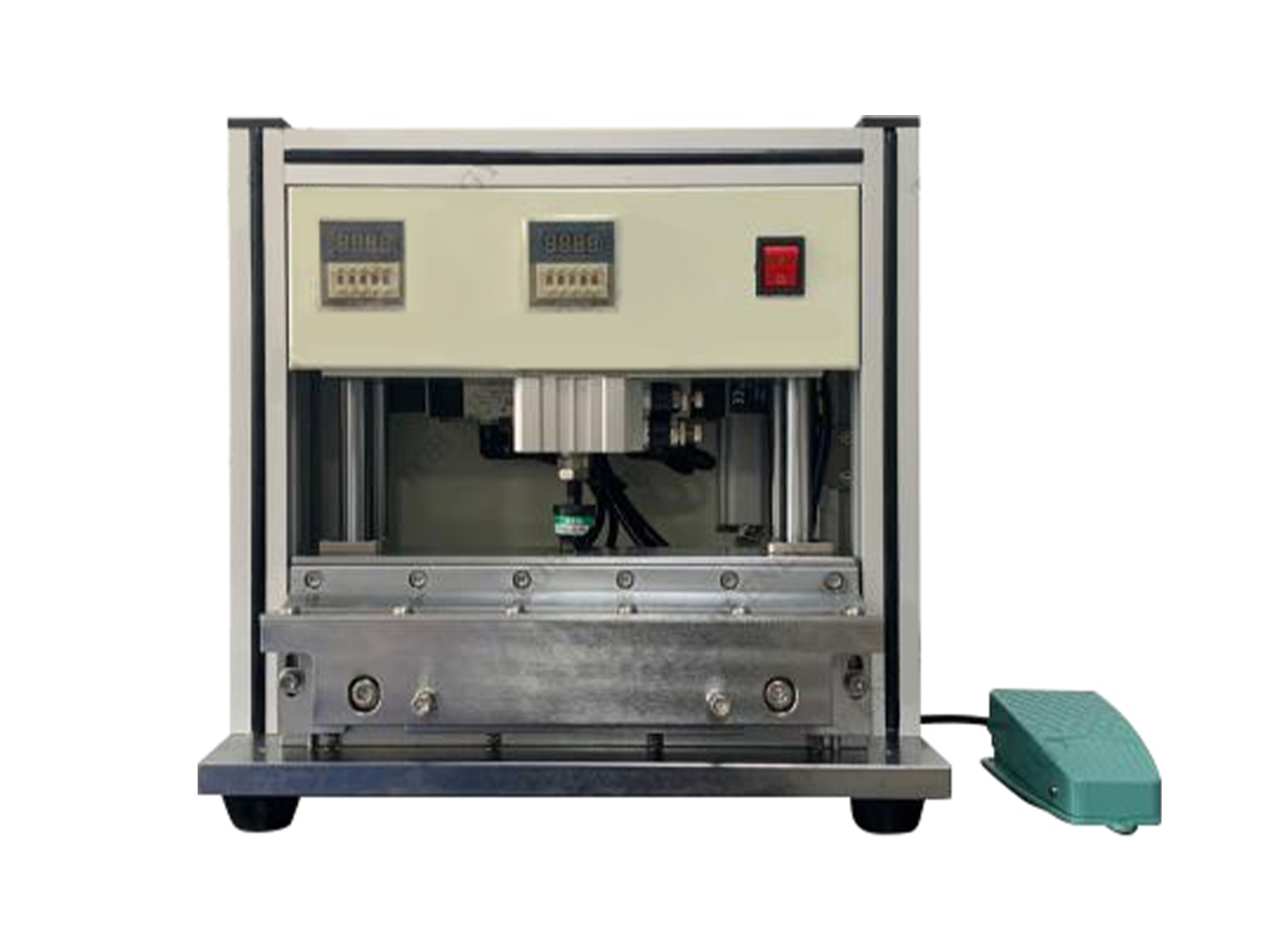

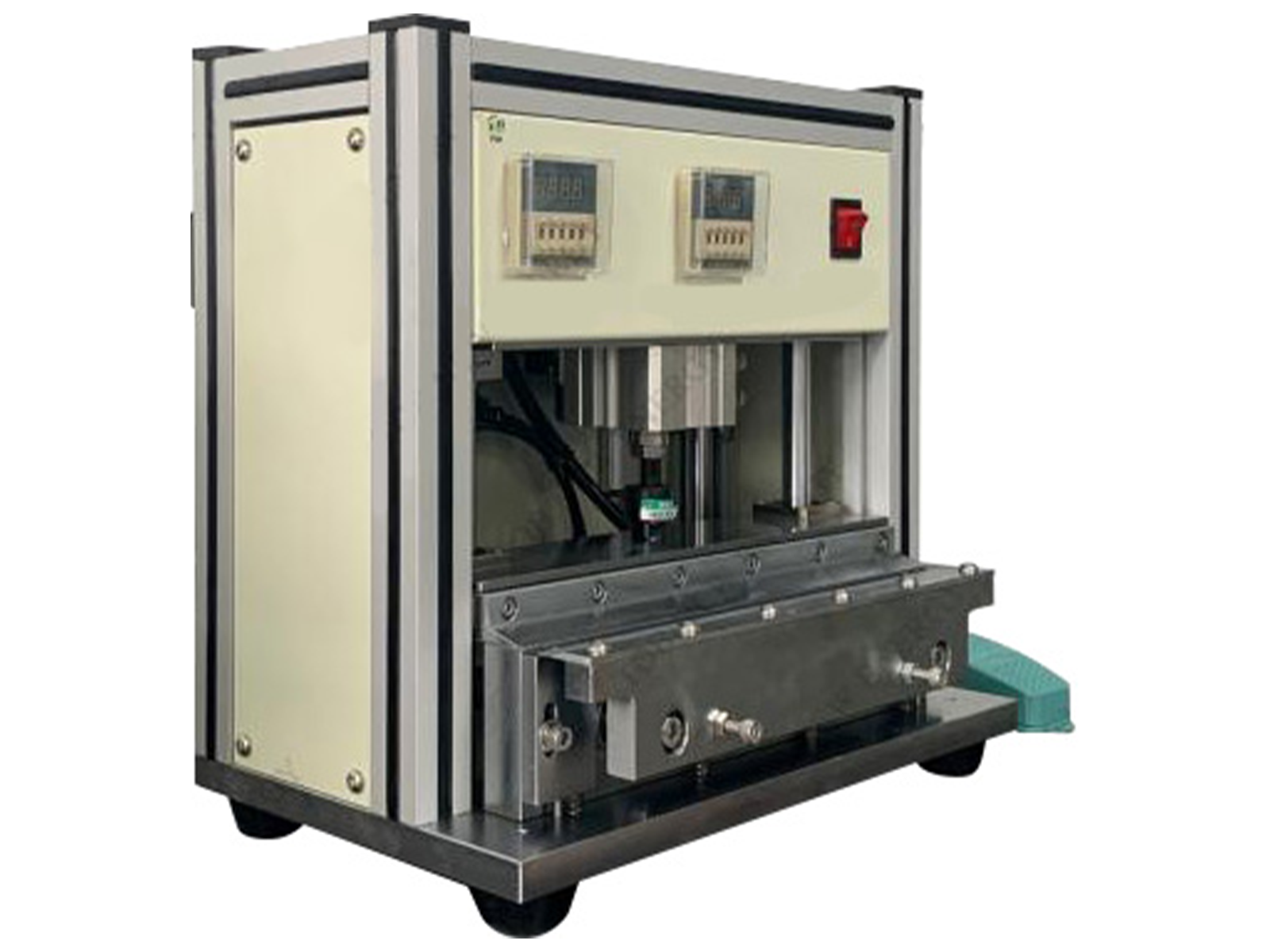

The Cell Lab 300 mm Edge Folding Machine is a high-precision benchtop solution designed to fold and seal the edges of lithium-ion and lithium-polymer pouch cells. With its pneumatic-assisted mechanism and adjustable folding width, it eliminates sharp corners that could compromise the cell’s aluminium-laminate packaging, ensuring both structural integrity and safety.

Ideal for laboratory research and pilot-scale production, this compact yet robust machine delivers smooth, uniform, and repeatable folds, improving overall product quality while significantly reducing manual labour.

Key Features

• • Improved Consistency – Guarantees uniform edge folds for enhanced pouch sealing and mechanical integrity.

  • Reduced Labour – Semi-automated pneumatic drive reduces operator effort and enhances throughput.

  • Increased Efficiency – Accelerates pouch-cell preparation without sacrificing accuracy or alignment.

  • Adjustable Folding Width – Supports a wide range of pouch sizes (2–6 mm) for flexible cell formats.

  • Compact & Reliable – Space-saving, benchtop design suited for R&D laboratories and pilot-line assembly.

Specifications:

Applications & Industries

• Lithium-ion pouch-cell R&D

• Polymer battery sealing preparation

• Pilot-line pouch-cell assembly

• Battery safety and packaging research

• Educational or prototyping laboratories

FAQ

Q1: Can this edge-folding machine handle different pouch sizes?
A1: Yes. The folding width can be easily adjusted from 2 to 6 mm, allowing compatibility with multiple pouch dimensions.

Q2: Is the operation manual or pneumatic?
A2: It is pneumatically assisted, providing smooth and consistent pressure to achieve precise folds.

Q3: Does it require maintenance?
A3: Minimal maintenance is needed—periodic lubrication of the air circuit and inspection of clamps are sufficient.

Q4: Can it be used in a dry-room or glove-box environment?
A4: Yes, the machine’s small footprint and clean operation make it suitable for controlled-environment use.

Q5: What materials are supported for pouch film?
A5: It is compatible with common aluminium-laminate films used in lithium-ion and polymer battery packaging.
