Cell Lab 2 L Double Planetary Vacuum Mixer [Battery Slurry Mixer | PLC-Controlled Vacuum Mixing System | Dual-Speed Dispersion]

High-precision double planetary mixer for uniform electrode slurry preparation under vacuum

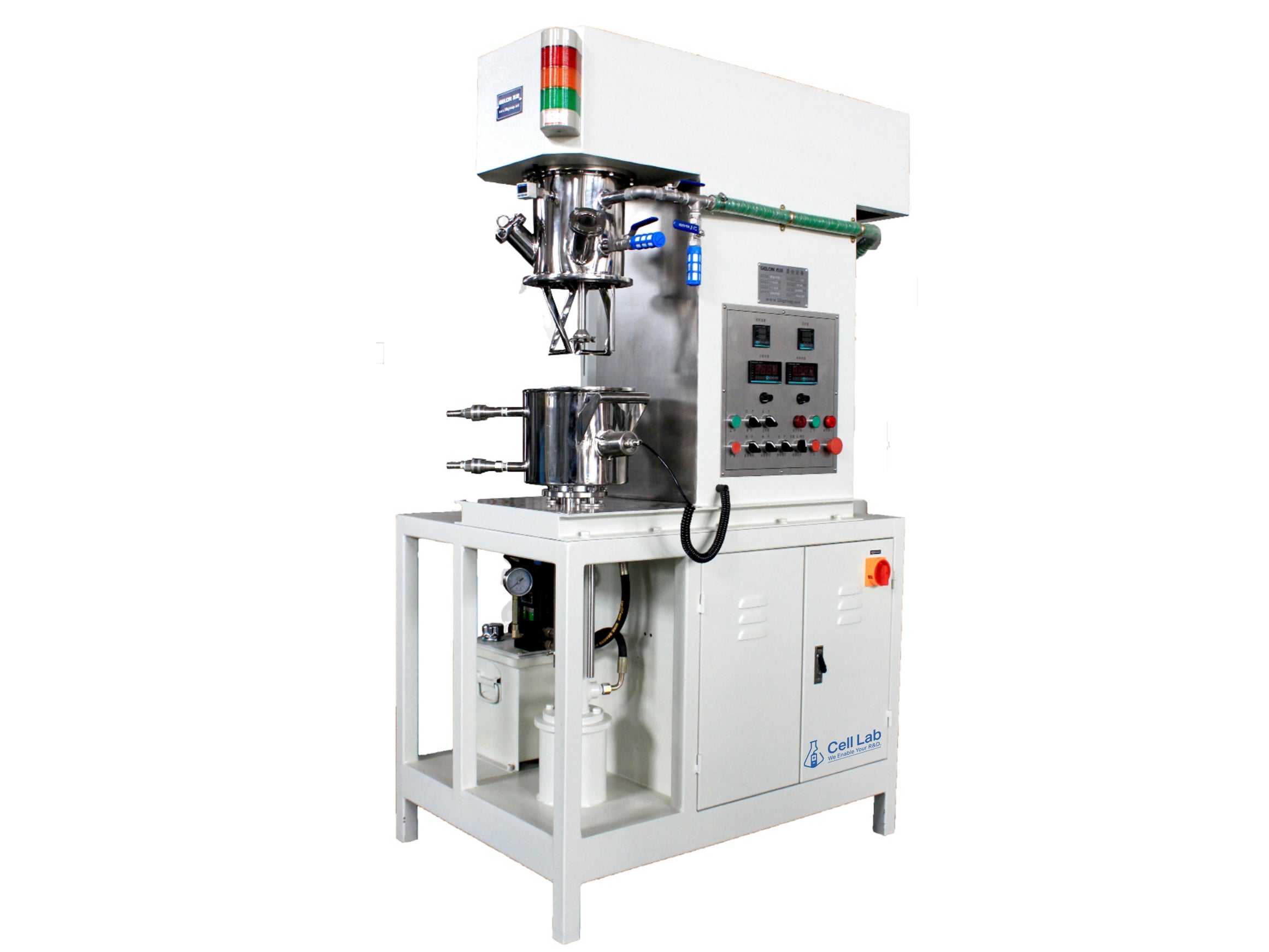

The Cell Lab 2 L Double Planetary Vacuum Mixer is a high-performance mixing system designed for bubble-free and homogeneous blending of battery electrode materials. Equipped with independent stirring and dispersion mechanisms, it delivers precise control over slurry viscosity, uniformity, and particle distribution. The PLC touchscreen interface allows real-time process management, while the robust 304 stainless-steel chamber ensures long-term reliability. Ideal for lithium-ion, sodium-ion, and solid-state battery research, this mixer offers scalable performance for laboratory and pilot production environments.

Key Features

  • Vacuum Mixing with High Uniformity: Removes trapped air and prevents oxidation for bubble-free, consistent slurry output.

  • Dual-Speed Control System: Independent stirring (8–76 rpm) and dispersion (450–4450 rpm) for fine process optimisation.

  • Robust 2 L Construction: 304 stainless-steel container ensures excellent corrosion resistance and durability.

  • PLC Touchscreen Interface: Intuitive control of time, speed, and vacuum parameters for repeatable batch processing.

  • Optional Cooling Integration: Compatible with water chiller for temperature-controlled mixing of heat-sensitive materials.

Technical Specifications:

Specification Details
Capacity 2L (Customisable)
Container Inner Diameter 180mm
Container Inner Height 150mm
Container Material 304 Stainless Steel
Stirring Speed 8–76rpm
Stirring Power 750W
Dispersion Speed 450–4450rpm
Dispersion Power 1100W
Accessories Vacuum pump included; water chiller optional
Controller PLC Touch Panel
Dimension (L×W×H) 1000 × 700 × 1835mm
Weight ~550kg
Voltage 3 Phase 380V (Customisable)
Power 3kW
Warranty One year limited warranty with lifetime product support

Applications & Industries

  • Electrode slurry mixing for lithium-ion and sodium-ion batteries

  • Solid-state and polymer electrolyte preparation

  • Ceramic, adhesive, and composite material dispersion

  • R&D and pilot-scale battery material manufacturing

  • Nanomaterial and conductive paste processing

FAQ

Q1: What is the advantage of a double planetary mixer compared to a single-shaft mixer?
It delivers superior mixing uniformity and torque, ensuring all particles are evenly dispersed under vacuum conditions.

Q2: Can I customise the container capacity?
Yes. Cell Lab offers multiple capacities (500 mL – 5 L) with optional material and design variations.

Q3: Does it include a vacuum system?
Yes. A high-efficiency vacuum pump is integrated to remove air bubbles and moisture during mixing.

Q4: What materials can it process?
It handles high-viscosity slurries, ceramic pastes, polymer gels, and battery electrode mixtures.

Q5: Is the cooling system included?
A water chiller can be supplied as an optional accessory for temperature-sensitive operations.
