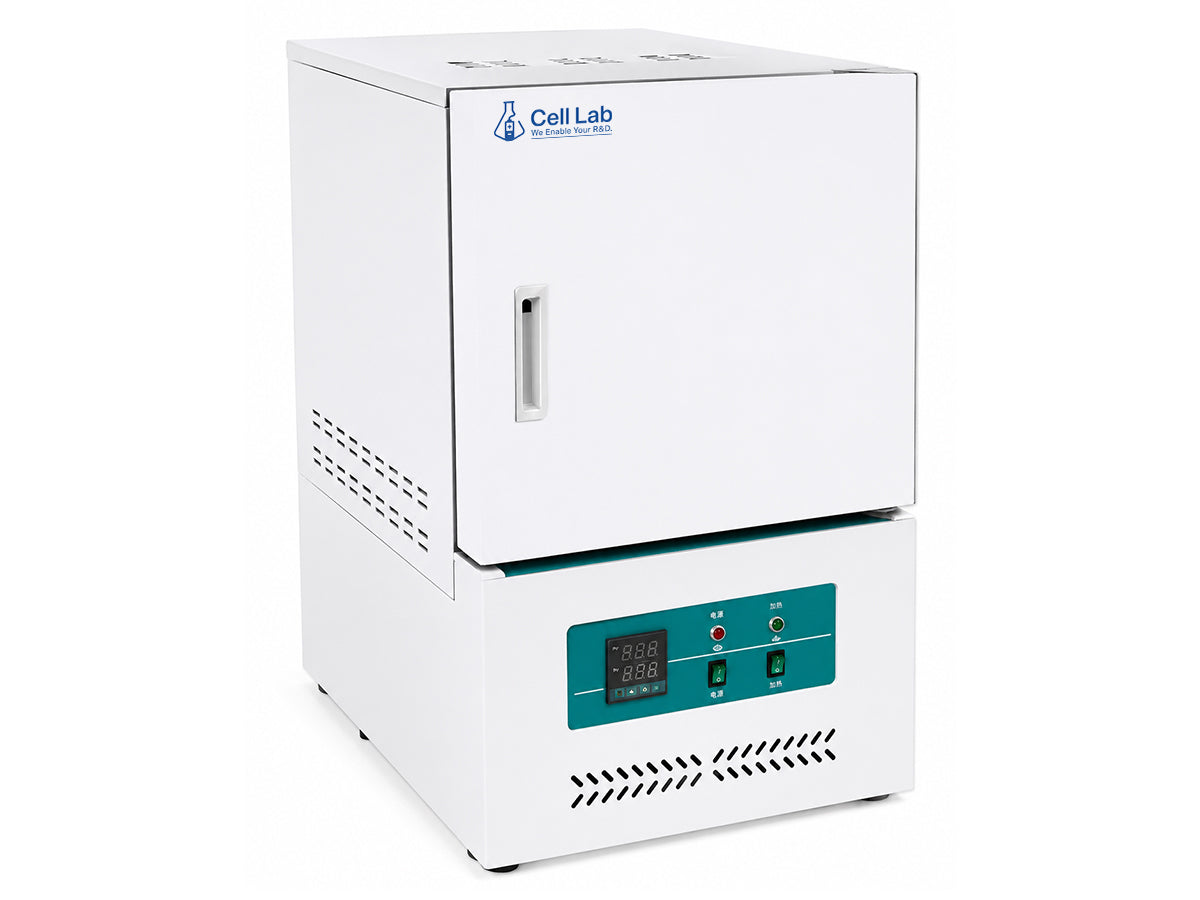

Cell Lab 1600°C ceramic fiber muffle furnace with PID programmable control, mullite insulation and 2L–36L chambers for sintering and heat treatment.

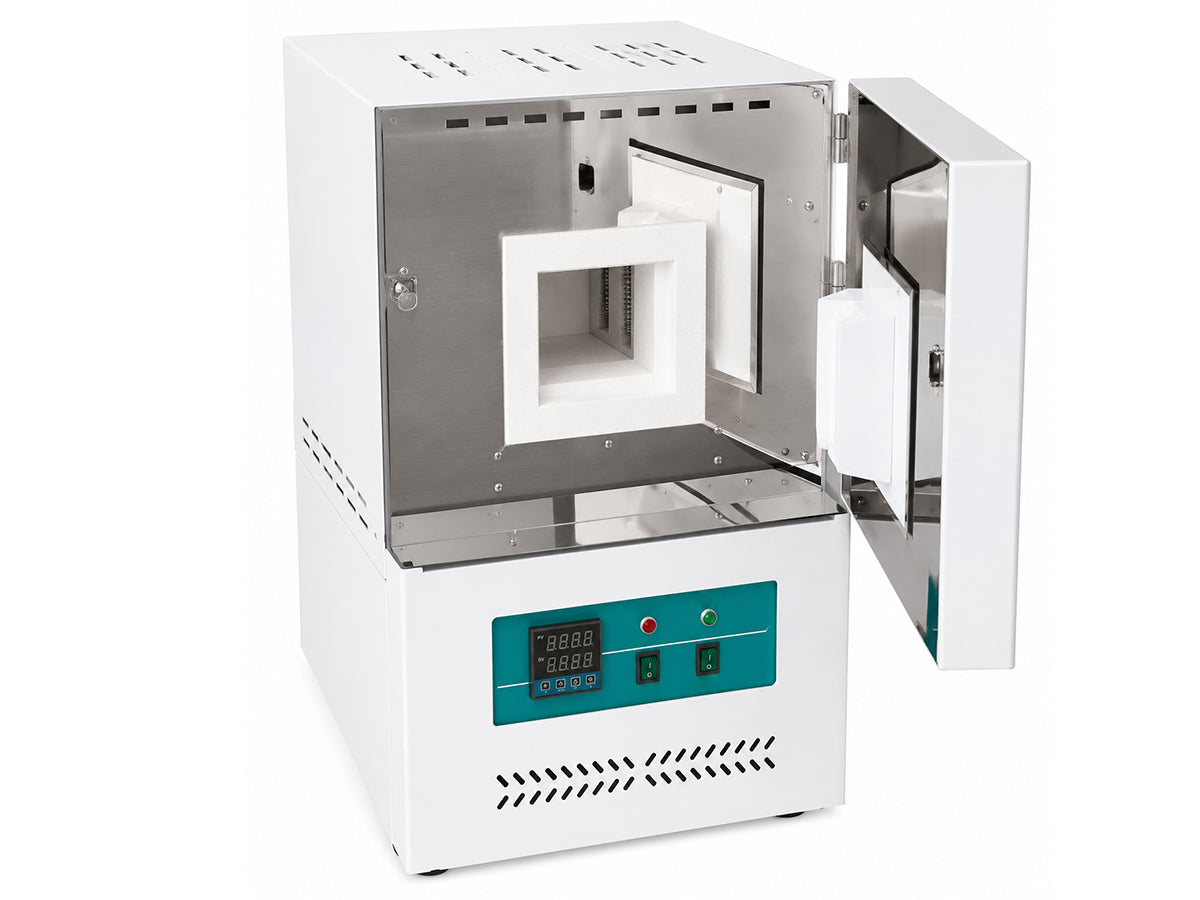

Cell Lab 1600°C ceramic fiber muffle furnace with PID programmable control, mullite insulation and 2L–36L chambers for sintering and heat treatment.
Cell Lab 1600°C ceramic fiber muffle furnace with PID programmable control, mullite insulation and 2L–36L chambers for sintering and heat treatment.
Cell Lab 1600°C ceramic fiber muffle furnace with PID programmable control, mullite insulation and 2L–36L chambers for sintering and heat treatment.

Cell Lab 1600°C Ceramic Fiber Muffle Furnace

Cell Lab 1600°C Ceramic Fiber Muffle Furnace [2L–36L | Programmable High Temperature Furnace] Ultra-high-temperature ceramic fiber laboratory furnaces with 30-segment, 64-segment or 7-inch touchscreen programmable controllers for sintering, calcination, annealing and advanced materials research. General Description The Cell Lab 1600°C...
Vendor: Cell Lab
SKU: IB0086
Product type: Muffle Furnace
£5,579.00
£5,579.00
Size: 2L 30 segment Controller
Subtotal: £5,579.00
Description
Description
x

Cell Lab 1600°C Ceramic Fiber Muffle Furnace [2L–36L | Programmable High Temperature Furnace]

Ultra-high-temperature ceramic fiber laboratory furnaces with 30-segment, 64-segment or 7-inch touchscreen programmable controllers for sintering, calcination, annealing and advanced materials research.

General Description

The Cell Lab 1600°C Ceramic Fiber Muffle Furnace Series is designed for demanding laboratory and industrial thermal processing applications requiring excellent temperature uniformity, rapid heating efficiency and precise programmable control.

Featuring a vacuum-formed polycrystalline mullite ceramic fiber chamber, the furnace provides outstanding thermal insulation performance, fast temperature response and reduced energy consumption. The system uses high-purity silicon molybdenum heating elements for reliable operation at temperatures up to 1600°C, with a recommended continuous working temperature of 1500°C.

The series supports a wide range of high-temperature applications including ceramic sintering, powder metallurgy, lithium battery material processing, heat treatment, glass firing, catalyst activation and advanced materials research.

Three controller configurations are available:

  • 30-Segment Domestic Programmable Controller
  • 64-Segment Imported Programmable Controller
  • 30-Segment 7-Inch Touchscreen Controller

Multiple chamber sizes from 2L to 36L allow users to select the ideal furnace configuration for laboratory-scale or pilot-scale workflows.

Key Features

• Ultra-high temperature performance up to 1600°C — Suitable for ceramic sintering, calcination, annealing and advanced materials processing.

• Polycrystalline mullite fiber insulation chamber — Lightweight ceramic fiber construction improves thermal efficiency and reduces heat loss.

• Silicon molybdenum rod heating system — Provides stable, long-life heating performance under high-temperature operating conditions.

• Advanced programmable PID temperature control — Supports segmented heating profiles, programmable operation and stable thermal management.

• Comprehensive safety protection system — Includes over-temperature protection, leakage protection, thermocouple fault alarm and door-opening power interruption.

Controller Configurations & SKU Variants

30-Segment Controller (Domestic Brand)

SKU Chamber Size Volume Voltage Max Temperature
IB0086 150 × 90 × 150 mm 2L 220V / 50Hz 1600°C
IB0087 150 × 150 × 150 mm 4L 220V / 50Hz 1600°C
IB0088 300 × 150 × 150 mm 8L 220V / 50Hz 1600°C
IB0089 300 × 200 × 200 mm 12L 380V / 50Hz 1600°C
IB0090 300 × 260 × 260 mm 20L 380V / 50Hz 1600°C
IB0091 300 × 400 × 300 mm 36L 380V / 50Hz 1600°C

Controller Features

  • 30-segment programmable control
  • LED interface
  • Intelligent PID microcomputer system
  • Constant value and program operation modes

64-Segment Controller (Imported Brand)

SKU Chamber Size Volume Voltage Max Temperature
IB0092 150 × 90 × 150 mm 2L 220V / 50Hz 1600°C
IB0093 150 × 150 × 150 mm 4L 220V / 50Hz 1600°C
IB0094 300 × 150 × 150 mm 8L 220V / 50Hz 1600°C
IB0095 300 × 200 × 200 mm 12L 380V / 50Hz 1600°C
IB0096 300 × 260 × 260 mm 20L 380V / 50Hz 1600°C
IB0097 300 × 400 × 300 mm 36L 380V / 50Hz 1600°C

Controller Features

  • 64-segment imported programmable controller
  • Enhanced program precision and stability
  • Advanced thermal profile management
  • Professional-grade laboratory control system

30-Segment 7.0-Inch Touchscreen Controller

SKU Chamber Size Volume Voltage Max Temperature
IB0098 150 × 90 × 150 mm 2L 220V / 50Hz 1600°C
IB0099 150 × 150 × 150 mm 4L 220V / 50Hz 1600°C
IB0100 300 × 150 × 150 mm 8L 220V / 50Hz 1600°C
IB0101 300 × 200 × 200 mm 12L 380V / 50Hz 1600°C
IB0102 300 × 260 × 260 mm 20L 380V / 50Hz 1600°C
IB0103 300 × 400 × 300 mm 36L 380V / 50Hz 1600°C

Controller Features

  • 7.0-inch touchscreen interface
  • 30-segment programmable operation
  • Real-time heating curve display
  • USB data storage support
  • Enhanced user interaction and monitoring

Technical Specifications

General Furnace Specifications

Parameter Specification
Maximum temperature 1600°C
Continuous working temperature 1500°C
Temperature accuracy ±1°C
Temperature resolution 1°C
Heating elements Silicon molybdenum rods
Furnace chamber material Polycrystalline mullite ceramic fiber
Outer shell Cold rolled steel with electrostatic spraying
Exhaust hole OD Φ22 mm / ID Φ18 mm
Temperature sensor S-type thermocouple
Temperature control mode Intelligent PID microcomputer control
Operation mode Constant value operation or programmable operation

Heating Power

Volume Heating Power
2L 3 kW
4L 5.5 kW
8L 9 kW
12L 10 kW
20L 12 kW
36L 15 kW

Temperature Performance

Parameter Specification
Temperature rise time ≤130 minutes
Temperature stability High precision programmable control
Heating uniformity Optimised multi-zone insulation design

Safety Protection

Safety Function Description
Over-temperature alarm Automatic temperature protection
Leakage protection Electrical safety protection
Door opening protection Automatic heating interruption
Thermocouple fault alarm Sensor monitoring protection
Sound & light alarm Audible and visual warning system

Applications & Industries

  • Ceramic sintering and firing
  • Powder metallurgy
  • Lithium battery material calcination
  • Rare earth material processing
  • Heat treatment and annealing
  • Semiconductor material research
  • Catalyst activation
  • Glass and enamel processing
  • University laboratories
  • Industrial materials research

SEO Keywords: 1600°C muffle furnace, ceramic fiber furnace, programmable laboratory furnace, PID high temperature furnace, silicon molybdenum furnace, laboratory sintering furnace, high temperature heat treatment furnace

FAQ

Q1: What is the difference between the three controller versions?

The domestic version uses a 30-segment programmable controller, the imported version provides advanced 64-segment programming, while the touchscreen version includes a 7-inch display with curve monitoring and USB storage.

Q2: What is the maximum operating temperature?

The furnace supports a maximum operating temperature of 1600°C and continuous operation around 1500°C.

Q3: What heating elements are used?

The furnace uses high-purity silicon molybdenum rods for stable ultra-high-temperature heating performance.

Q4: What industries commonly use this furnace series?

These furnaces are widely used in ceramics, metallurgy, battery research, semiconductors, advanced materials and university laboratories.

Q5: Does the touchscreen version support data export?

Yes. The touchscreen models support USB data storage and real-time heating curve viewing.
