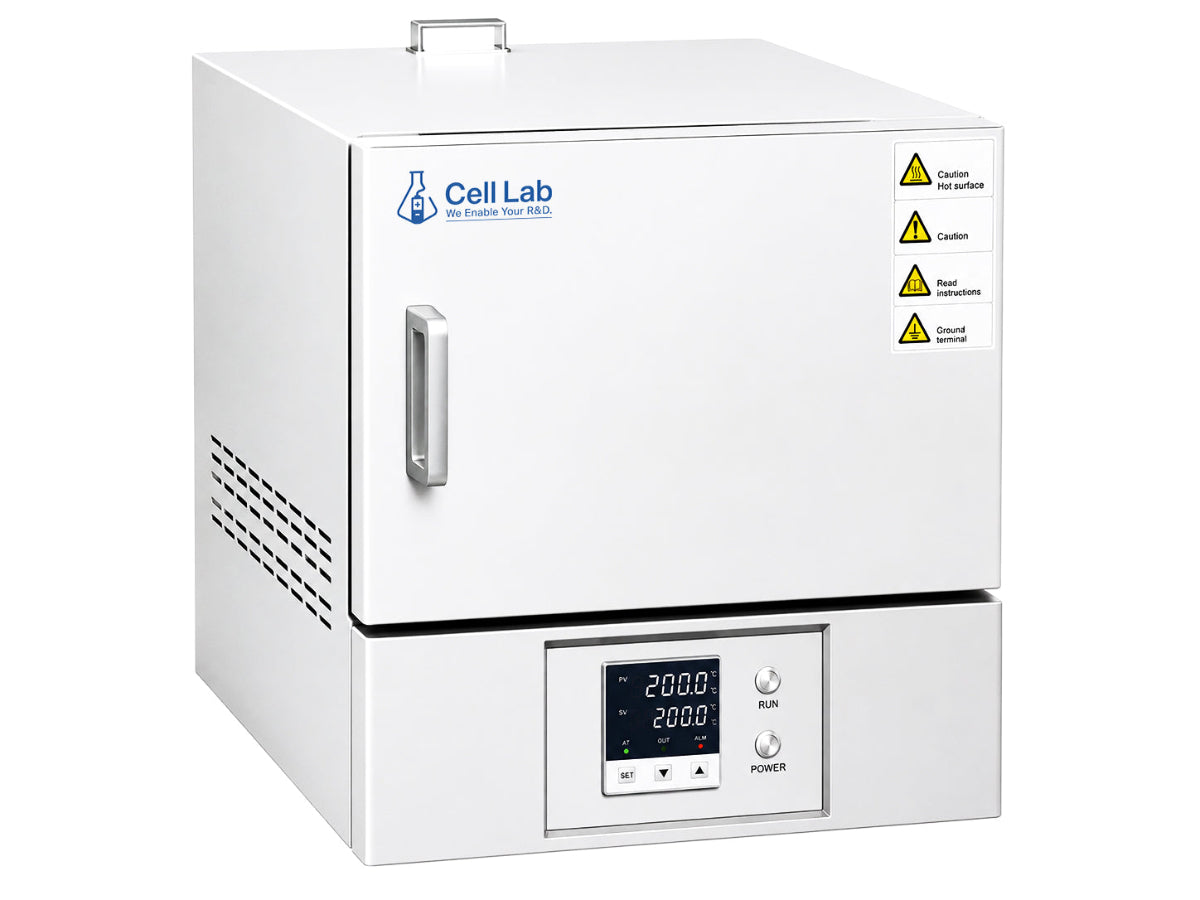

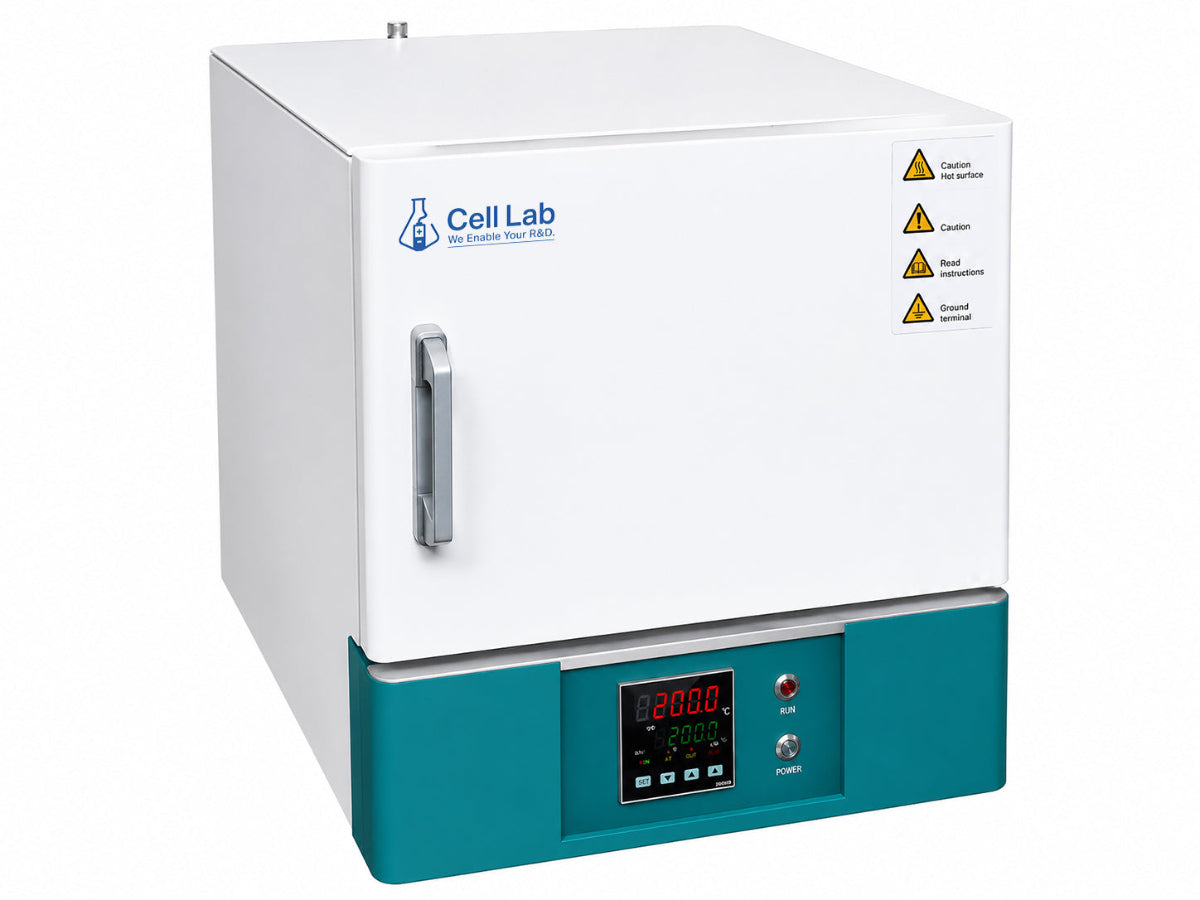

Cell Lab 1200°C Ceramic Fiber Muffle Furnace

Cell Lab 1200°C Ceramic Fiber Muffle Furnace [2L–36L | Standard, High Precision & Programmable Models] Compact high-temperature laboratory furnaces with ceramic fiber insulation, chimney exhaust system and optional programmable temperature controllers for sintering, ashing and heat treatment applications. General Description...
Vendor: Cell Lab
SKU: IB0104
Product type: Muffle Furnace
£1,809.00
£1,809.00
Capacity & Model: 2L 220V Standard Model
Subtotal: £1,809.00
Description
Description
x

Cell Lab 1200°C Ceramic Fiber Muffle Furnace [2L–36L | Standard, High Precision & Programmable Models]

Compact high-temperature laboratory furnaces with ceramic fiber insulation, chimney exhaust system and optional programmable temperature controllers for sintering, ashing and heat treatment applications.

General Description

The Cell Lab 1200°C Ceramic Fiber Muffle Furnace Series is engineered for laboratory thermal processing applications requiring reliable temperature control, rapid heating performance and excellent thermal insulation efficiency.

This furnace series uses a vacuum-formed polycrystalline mullite ceramic fiber chamber combined with a three-side alloy wire heating system, delivering fast heat-up speed, stable thermal performance and reduced energy consumption. The integrated chimney exhaust structure improves airflow and is especially beneficial for ashing and material decomposition applications.

The series is available in three controller configurations:

  • Standard Model (China Brand Controller)
  • High Precision Model (Japan Brand Controller)
  • Program Controller Model (64-Segment Programmable Controller)

Available chamber volumes range from 2L to 36L, making the system suitable for university laboratories, materials research institutes, battery research, metallurgy, ceramics and industrial thermal analysis applications.

Key Features

• Maximum operating temperature up to 1200°C — Ideal for sintering, calcination, elemental analysis, heat treatment and ash testing.

• Polycrystalline ceramic fiber insulation chamber — Provides rapid heating, excellent thermal efficiency and low heat loss.

• Three-side alloy wire heating system — Uniform heating from left, right and top sides improves chamber temperature consistency.

• Multiple controller configurations available — Choose from standard control, high-precision Japanese controller or 64-segment programmable control.

• Comprehensive laboratory safety protection — Includes over-temperature protection, thermocouple fault alarm, door-opening power interruption and sound-light alarm system.

Model Series Overview

Standard Model — China Brand Controller

Features

  • Domestic single-stage temperature controller
  • Built-in timer function (1–3200 min)
  • Chimney exhaust system included
  • Reliable economical laboratory furnace solution
SKU Chamber Size Volume Voltage Max Temp
IB0104 200 × 120 × 80 mm 2L 220V / 50Hz 1200°C
IB0105 300 × 200 × 120 mm 7.2L 220V / 50Hz 1200°C
IB0106 300 × 200 × 200 mm 12L 220V / 50Hz 1200°C
IB0107 400 × 250 × 160 mm 16L 380V / 50Hz 1200°C
IB0108 400 × 250 × 160 mm 16L 220V / 50Hz 1200°C
IB0109 300 × 400 × 300 mm 36L 380V / 50Hz 1200°C

High Precision Model — Japan Brand Controller

Features

  • Japanese precision temperature controller
  • Enhanced temperature stability and response
  • No timer configuration
  • Designed for precision laboratory thermal processing
SKU Chamber Size Volume Voltage Max Temp
IB0110 200 × 120 × 80 mm 2L 220V / 50Hz 1200°C
IB0111 300 × 200 × 120 mm 7.2L 220V / 50Hz 1200°C
IB0112 300 × 200 × 200 mm 12L 220V / 50Hz 1200°C
IB0113 400 × 250 × 160 mm 16L 380V / 50Hz 1200°C
IB0114 400 × 250 × 160 mm 16L 220V / 50Hz 1200°C
IB0115 300 × 400 × 300 mm 36L 380V / 50Hz 1200°C

Program Controller Model — 64-Segment Programmable Controller

Features

  • Japanese Fuji 64-segment programmable controller
  • Multi-stage temperature programming
  • Timer and waiting functions
  • Automated thermal process operation
  • Ideal for advanced laboratory workflows
SKU Chamber Size Volume Voltage Max Temp
IB0116 200 × 120 × 80 mm 2L 220V / 50Hz 1200°C
IB0117 300 × 200 × 120 mm 7.2L 220V / 50Hz 1200°C
IB0118 300 × 200 × 200 mm 12L 220V / 50Hz 1200°C
IB0119 400 × 250 × 160 mm 16L 380V / 50Hz 1200°C
IB0120 400 × 250 × 160 mm 16L 220V / 50Hz 1200°C
IB0121 300 × 400 × 300 mm 36L 380V / 50Hz 1200°C

Technical Specifications

General Specifications

Parameter Specification
Maximum temperature 1200°C
Temperature range 100–1200°C
Temperature resolution 1°C
Temperature accuracy ±1°C
Heating time to max temp ≤30 min
Chamber material Ceramic fiber
Insulation layer Polycrystalline ceramic fiber
Heating element Alloy heating wire
Heating structure Left, right and top-side heating
Temperature sensor High-precision K-type sensor
Exhaust hole Φ30 mm chimney outlet
Temperature setting Touch button setting
Operation mode Fixed temperature or programmable operation

Heating Power

Chamber Volume Heating Power
2L 1.5 kW
7.2L 3.0 kW
12L 4.5 kW
16L 6.0 kW
36L 9.0 kW

Controller System Specifications

Model Type Controller Type
Standard Model Domestic Yudian single-stage controller
High Precision Model Japanese conduction single-stage controller
Program Controller Model Japanese Fuji 64-segment LCD programmable controller

Safety Protection

Safety Function Description
Over-temperature alarm Automatic thermal protection
Thermocouple fault protection Sensor monitoring safety
Door opening protection Automatic heating interruption
Sound-light alarm Audible and visual warning
Parameter memory Power-off recovery memory

Applications & Industries

  • Ceramic sintering
  • Ashing and elemental analysis
  • Powder metallurgy
  • Lithium battery material calcination
  • University laboratory research
  • Glass and enamel testing
  • Heat treatment and annealing
  • Catalyst activation
  • Materials science research
  • Industrial thermal processing

SEO Keywords: 1200°C muffle furnace, ceramic fiber furnace, programmable laboratory furnace, high temperature furnace, laboratory heat treatment furnace, PID muffle furnace, ash furnace

FAQ

Q1: What is the difference between the three model types?

The Standard Model uses a domestic controller with timer functionality, the High Precision Model uses a Japanese precision controller, and the Program Controller Model supports 64-segment programmable temperature control.

Q2: Does the furnace include an exhaust system?

Yes. All models include a chimney exhaust structure that improves airflow and supports ashing applications.

Q3: What materials are used for chamber insulation?

The chamber uses vacuum-formed polycrystalline mullite ceramic fiber for excellent thermal insulation efficiency.

Q4: Can the programmable model run multi-step heating programs?

Yes. The Program Controller Model supports 64-segment programmable heating profiles with automatic operation.

Q5: What applications are suitable for this furnace series?

These furnaces are suitable for sintering, calcination, thermal analysis, heat treatment, ash testing and advanced materials research.
