Cell Lab 10440 Cylindrical Battery Cases – 100 pcs with Anti-Explosive Cap and Insulating O-Ring [AAA-Size | Nickel-Plated Steel]
Cell Lab 10440 Cylindrical Battery Cases – 100 pcs with Anti-Explosive Cap and Insulating O-Ring [AAA-Size | Nickel-Plated Steel] Durable and safe casing solution for laboratory battery prototyping The Cell Lab™ 10440 Cylindrical Battery Case Set provides a professional, safety-enhanced...
- £189.00
- £189.00
- Unit price
- per
Subtotal:
£189.00
Couldn't load pickup availability
Description
xCell Lab 10440 Cylindrical Battery Cases – 100 pcs with Anti-Explosive Cap and Insulating O-Ring [AAA-Size | Nickel-Plated Steel]
Durable and safe casing solution for laboratory battery prototyping

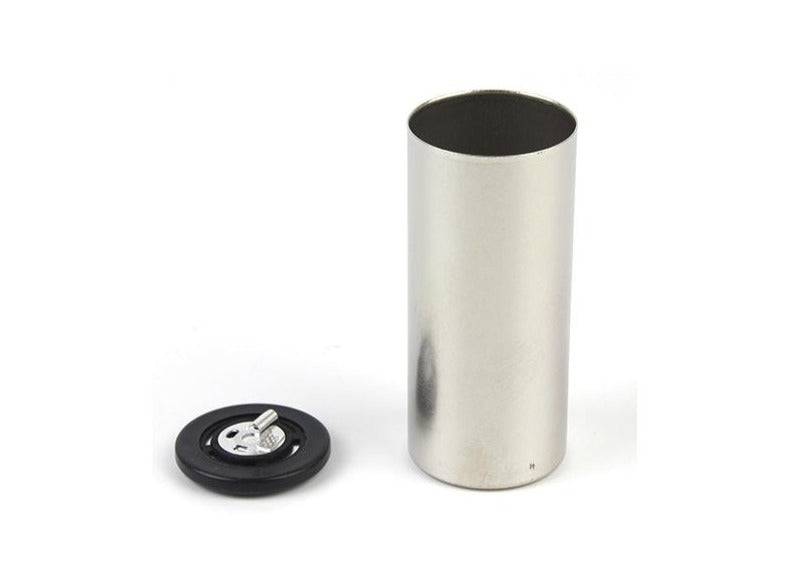

The Cell Lab™ 10440 Cylindrical Battery Case Set provides a professional, safety-enhanced enclosure for AAA-size (10440 format) lithium-ion cell assembly. Each case features an integrated anti-explosive cap, PTC thermistor, and nylon insulating O-ring, offering multi-layer protection during fabrication, testing, and operation. Designed for small-scale R&D, pilot production, and laboratory cell assembly, these cases ensure both mechanical reliability and electrical safety in every experiment.
Key Features
• Explosion-Resistant Design
Built-in safety vent releases internal gas pressure automatically when it exceeds 2.5 MPa, preventing cell rupture and ensuring safe operation under abnormal conditions.
• Integrated PTC Thermistor
Incorporates a PTC over-current protection element that interrupts the circuit at approximately 120 °C, offering superior protection against short circuits and overheating.
• Insulated Assembly
Top and bottom insulation components—including a nylon O-ring and insulating washer—prevent short-circuiting during electrode stacking and welding.
• Durable Nickel-Plated Steel Housing
The A3-grade nickel-plated steel case ensures strong mechanical integrity, excellent corrosion resistance, and stable conductivity for both prototype and pre-production testing.
• Ready for Immediate Lab Use
Each unit is preassembled with its protective components (cap + O-ring), streamlining workflow for researchers engaged in custom cell design, balancing, or layer stacking experiments.
Technical Specifications
| Cell Format | 10440 (AAA-size) |
|---|---|
| Outer Diameter | 10.5 mm |
| Height | 44 mm |
| Quantity per Set | 100 pieces |
| Material | Nickel-plated A3 steel (case & cap) |
| O-Ring Material | Nylon |
| Cap Safety Valve Pressure | Opens at ≥ 2.5 MPa to release excess pressure |
| PTC Thermistor Function | Cuts off current at ~120 °C for thermal protection |
Applications & Industries
-
Lithium-ion and LiFePO₄ cylindrical cell R&D
-
Prototype and small-batch battery manufacturing
-
Educational and institutional laboratory research
-
Testing of anode/cathode materials, separator films, and electrolyte systems
Important Notes
-
Images are for reference only; final product may vary slightly due to manufacturing improvements.
-
Handle all battery case components in an ESD-safe environment and avoid contamination during assembly.
-
Ensure proper electrode alignment to maintain insulation integrity during cell fabrication.
FAQ
Q1: Are these cases reusable?
A1: While designed for laboratory use, reusing is not recommended after welding or heat exposure, as structural and sealing performance may degrade.
Q2: Are they compatible with commercial 10440 cell holders?
A2: Yes, dimensions conform to standard 10440 (AAA) form factors used in laboratory battery modules and test fixtures.
Q3: What welding method is recommended?
A3: Spot welding or ultrasonic welding is preferred; avoid excessive heat to protect the internal insulation components.
Q4: Is the PTC thermistor user-replaceable?
A4: No, the PTC device is integrated within the cap for safety and should not be disassembled.
