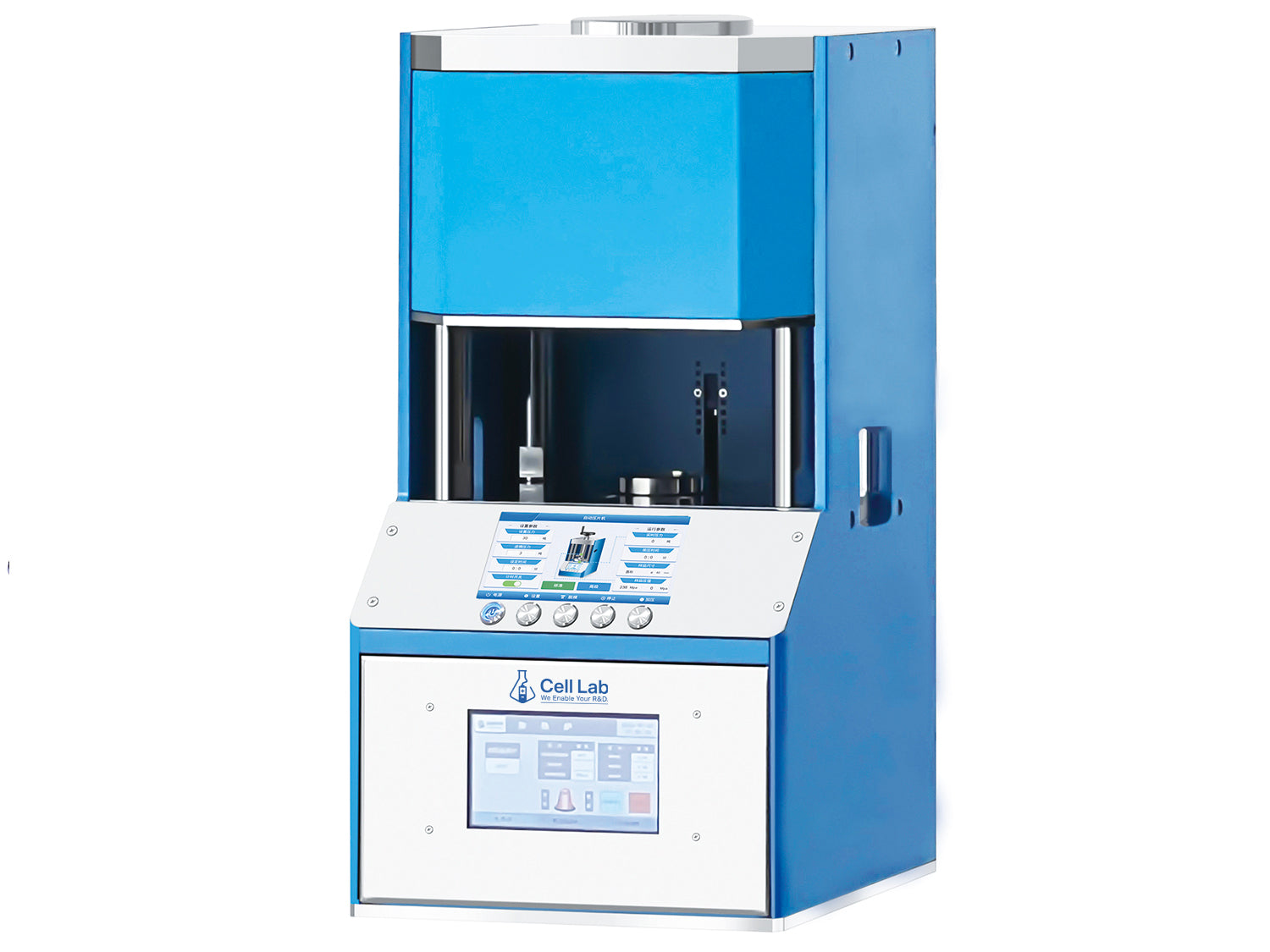

Cell Lab 10-Ton Automatic Heated Pellet Press [900 °C, High Temperature]

Cell Lab 10-Ton Automatic Heated Pellet Press [900 °C, High Temperature] High-performance laboratory hot press for polymers, ceramics, and electrode films General Description The Cell Lab 10-Ton Automatic Heated Pellet Press is a benchtop laboratory hot press engineered for polymer,...
Vendor: Cell Lab
SKU: CL0703
Product type: Pellet Press Machine
£14,939.00
£14,939.00
Subtotal: £14,939.00
Description
Description
x

Cell Lab 10-Ton Automatic Heated Pellet Press [900 °C, High Temperature]

High-performance laboratory hot press for polymers, ceramics, and electrode films

General Description

The Cell Lab 10-Ton Automatic Heated Pellet Press is a benchtop laboratory hot press engineered for polymer, ceramic powder, and electrode/membrane film preparation. With a heating range up to 900 °C and a maximum pressure of 10 metric tons, it provides precise and consistent performance for high-temperature pressing applications.

Equipped with water-cooling jackets for rapid temperature reduction, the press supports extended operational stability (optional external water chiller available). The robust cylinder design with an 80 mm stroke ensures reliable force distribution, while the programmable pressure holding capability allows for consistent sample compaction.

This system is compatible with Cell Lab pellet pressing dies (⌀10–30 mm) and can be integrated into workflows for powder metallurgy, materials research, energy storage studies, and thin-film fabrication.

Key Features

  1. High-temperature heating — Dual heating plates reaching up to 900 °C for advanced material processing.

  2. 10-ton force capacity — Adjustable pressure (0–10 metric tons) for powders, polymers, and films.

  3. Water-cooled system — Integrated jackets with optional chiller for efficient heat dissipation.

  4. Versatile sample compatibility — Supports pellet pressing (⌀10–30 mm) and thin-film preparation.

  5. Laboratory-grade design — Suitable for R&D in ceramics, batteries, polymers, and analytical spectroscopy.

Specifications

Product No. Pressure Range Heating Range Cylinder Stroke Pressure Holding Time Sample Size Die Dimensions Chamber ID Press Dimensions (mm) Power Supply Net Weight
CL0703 0–10 metric tons Up to 900 °C 80 mm Unlimited ⌀10–30 mm ⌀50 × 90 mm ⌀60 mm 400 × 380 × 780 220 V / 50 Hz 170 kg

Applications & Industries

  • Powder metallurgy — Hot compaction of advanced metal powders.

  • Ceramics & composites — Fabrication of dense high-temperature pellets and membranes.

  • Electrochemistry — Preparation of electrode films and solid-state electrolyte samples.

  • Polymer science — High-temperature film pressing and structural polymer research.

  • Spectroscopy & material analysis — Reliable sample preparation for XRF, FTIR, and thermal studies.

FAQ

Q1: What is the maximum operating temperature?
Up to 900 °C, suitable for advanced high-temperature sample preparation.

Q2: Does the press include a water chiller?
The press includes water-cooling jackets. An external water chiller can be purchased separately if faster cooling is required.

Q3: What sample sizes are supported?
Compatible with ⌀10–30 mm pellets, depending on the selected pressing die set.

Q4: Can this press be used for electrode film preparation?
Yes, it is ideal for pressing thin electrode and membrane films used in energy storage research.

Q5: What power supply is required?
The unit operates at 220 V / 50 Hz (laboratory standard in most regions).
