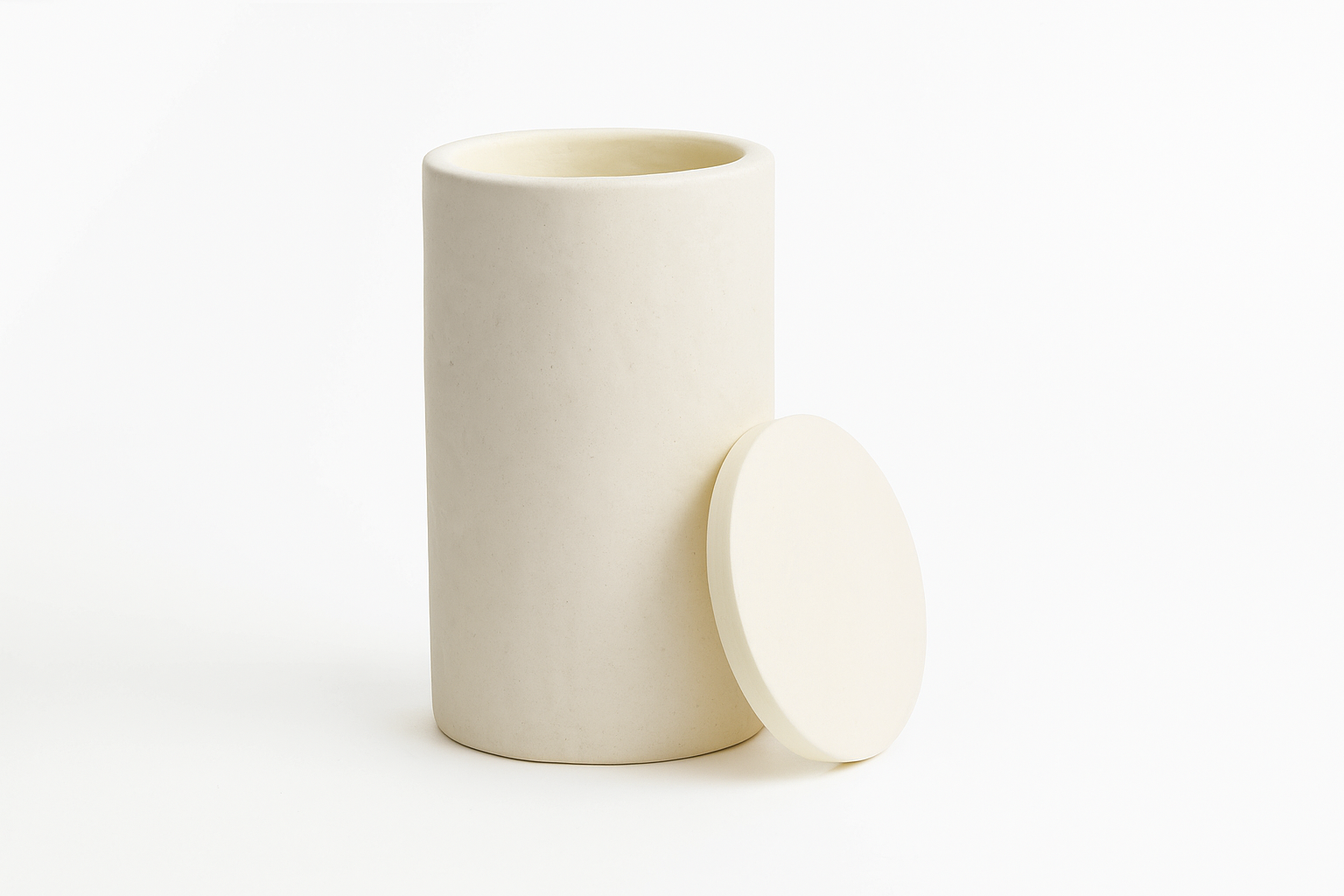

Cell Lab High-Purity Magnesium Oxide (MgO) Crucible [100 mL High-Temperature Type]

Superior chemical inertness and thermal stability up to 2200 °C

General Description

Cell Lab high-purity Magnesium Oxide (MgO) crucibles are engineered for ultra-high-temperature processes reaching 4000 °F (≈ 2200 °C). MgO provides superior chemical inertness and resistance to molten metals, slags and aggressive compounds, outperforming conventional Al₂O₃ crucibles.

These crucibles are ideal for lithium solid-state electrolyte synthesis, superconductor fabrication and nickel-based super-alloy processing. MgO’s unique stability with lithium prevents unwanted reactions, maintaining lithium vapour pressure and minimising material loss during sintering.

Key Features

  • Ultra-high temperature resistance (≤ 2200 °C): Performs reliably under extreme furnace and casting conditions.

  • Outstanding chemical inertness: Non-reactive with lithium, metals, slags and superconductor compounds.

  • High-purity composition: > 99.7 wt % MgO with trace impurities below 0.01 %.

  • Enhanced dimensional stability: Maintains structural integrity through repeated heating and cooling cycles.

  • Customisable design: Covers and bespoke dimensions available for specialised laboratory setups.

Technical Specifications

Property Specification
Material High-purity Magnesium Oxide (MgO)
Purity (wt %) 99.71 % MgO CaO 0.03 Fe 0.002 Mn 0.0005 SiO₂ 0.0009 Al₂O₃ 0.003
Outer Diameter 50 mm
Height (without cover) 80 mm
Volume ≈ 100 mL
Application Temperature Up to 2200 °C (≈ 4000 °F)
Cover Option Available at additional cost
Customisation Dimensions and tight tolerance available upon request
Warranty Consumable product — defect report within 1 week of delivery

Applications & Industries

  • Lithium-solid-electrolyte and ceramic sintering

  • Superconductor and β-Alumina material processing

  • Dielectric / piezoelectric / pyroelectric material fabrication

  • Nickel-based super-alloy casting

  • Plutonium and uranium compound handling

  • High-temperature research furnaces and calcination setups

FAQ

Q1: Why choose MgO over Al₂O₃ for high-temperature applications?
A1: MgO offers superior chemical inertness and withstands 2200 °C, while Al₂O₃ typically fails around 1600 °C. It is especially advantageous for lithium systems.

Q2: Is MgO reactive with lithium during solid-state synthesis?
A2: No — MgO remains stable with lithium and prevents lithium loss, unlike Al₂O₃ which forms undesired compounds.

Q3: Do I need to pre-heat the crucible before use?
A3: Yes. Dry the crucible at 105 °C for 2 hours to remove moisture before initial use.

Q4: Can covers be purchased with the crucible?
A4: Yes. Matching MgO or Al₂O₃ covers are available separately to reduce oxygen exposure during calcination.

Q5: Is this crucible reusable?
A5: Yes, but like all ceramic consumables, performance gradually decreases under thermal shock or aggressive chemistries.
