xCell Lab High-Purity Alumina (Al₂O₃) Rectangular Boat Crucible [10-60 mL]
Rectangular alumina crucibles for chemical calcination and ceramic sample processing
General Description

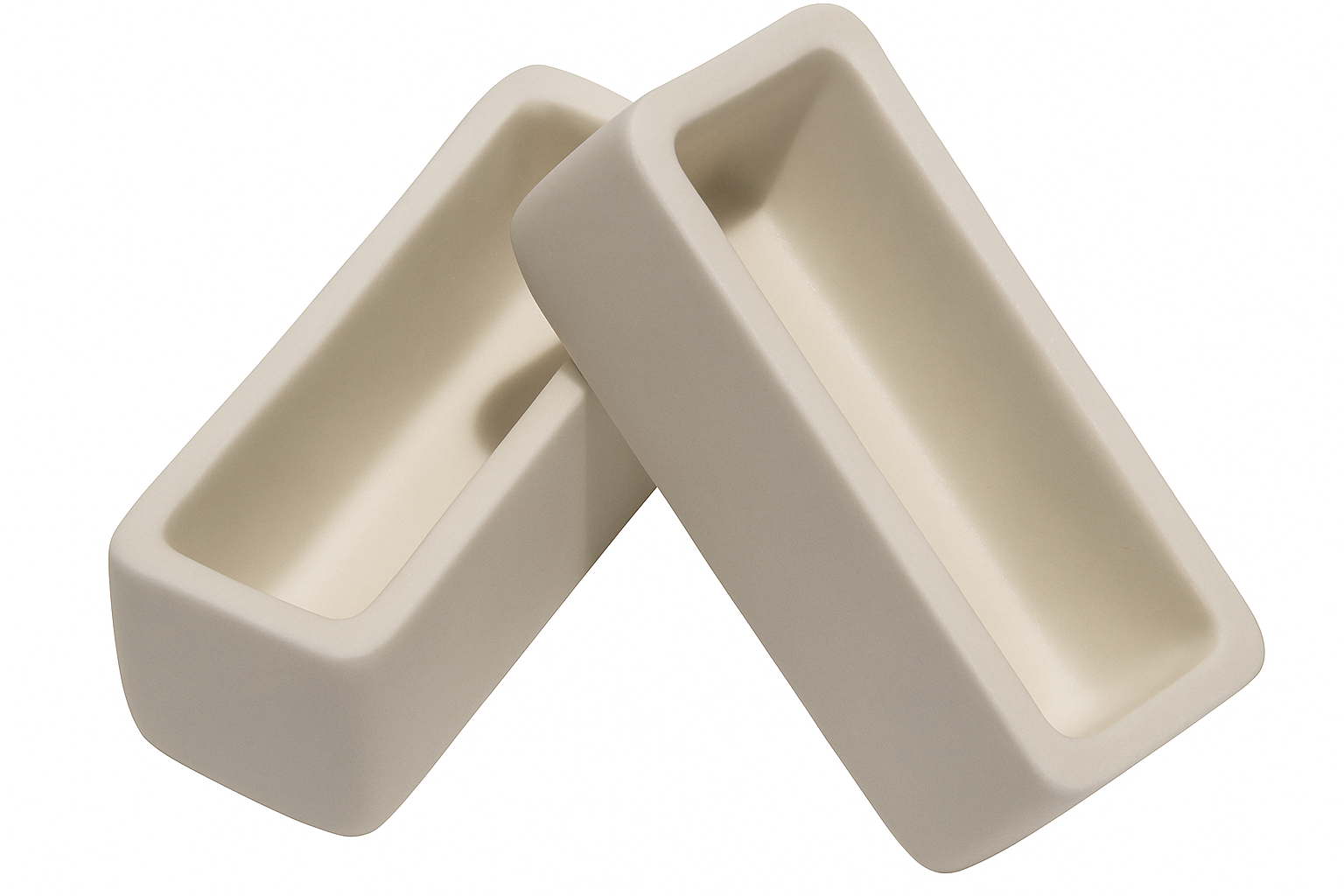

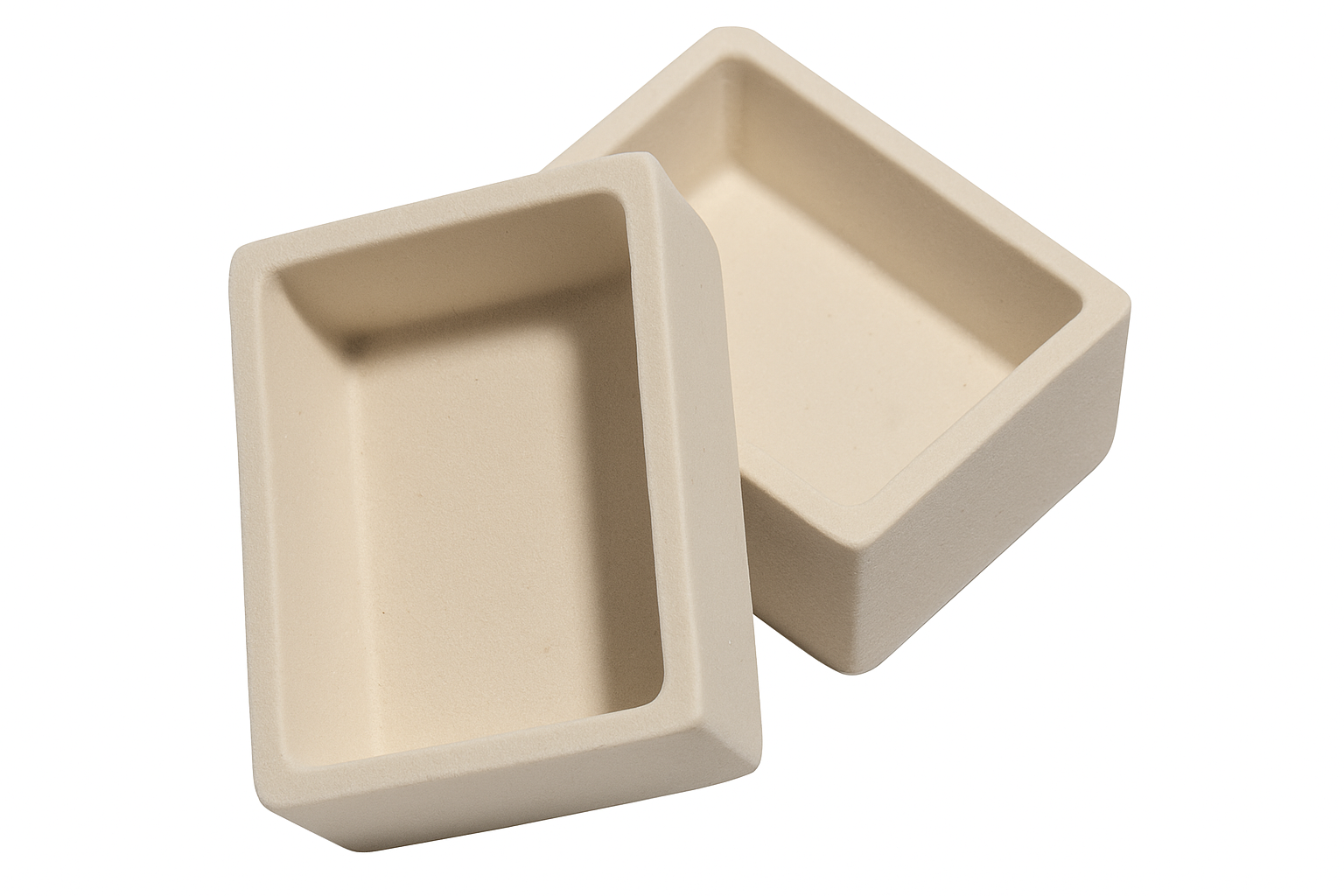

Cell Lab Rectangular Alumina (Al₂O₃) Boat Crucibles are crafted from > 99 % high-purity alumina for stable performance under high temperatures up to 1600 °C.
Their rectangular geometry provides an ideal shape for calcination, powder processing, metal casting, and sample holding in tube furnaces or ovens.
Each crucible offers excellent thermal shock resistance and chemical inertness toward most acids and alkalis, ensuring precise results in repeated heating cycles.
Optional covers are available to reduce contamination and maintain a low-oxygen environment during firing or chemical processing.
Key Features
-
High-temperature resistance (≤ 1600 °C): Perfect for calcination and metal melting applications.
-
Superior chemical stability: Unaffected by most reagents and atmospheric conditions.
-
Rectangular design: Optimised for uniform heating and efficient powder placement.
-
> 99 % alumina purity: Ensures low contamination and consistent thermal conductivity.
-
Customisable dimensions: Tailored sizes and tight tolerances available on request.
Technical Specifications
| Property | Specification |
|---|---|
| Material | High-purity Alumina (Al₂O₃) |
| Purity | > 99 % |
| Maximum Temperature | 1600 °C |
| Wall Thickness | Standard ≈ 3 – 3.5 mm |
| Form | Rectangular boat crucible |
| Optional Accessories | Matching Al₂O₃ cover (sold separately) |
| Warranty | Consumable item – report manufacturing defects within 1 week of delivery |
Available Models and Dimensions
|
Product No. |
Outer Dimensions (L × W × H, mm) |
Internal Capacity (mL) |
Purity (%) |
Max Temp (°C) |
|
CL0822 |
50 × 20 × 20 mm |
~10 mL |
> 99 % |
1600 °C |
|
CL0823 |
40 × 40 × 20 mm |
~20 mL |
||
|
CL0824 |
50 × 40 × 20 mm |
~25 mL |
||
|
CL0825 |
100 × 20 × 20 mm |
~20 mL |
||
|
CL0826 |
100 × 40 × 20 mm |
~65 mL |
||
|
CL0827 |
100 × 30 × 30 mm |
~60 mL |
||
|
CL0828 |
100 × 100 × 30 mm |
— |
custom sizes and tight tolerances can be manufactured upon request.
Applications & Industries
-
Chemical calcination and thermal decomposition
-
Metal casting and alloy research
-
Ceramic powder sintering and coating experiments
-
Materials science and metallurgical labs
-
Catalyst preparation and thermal analysis
FAQ
Q1: What are rectangular boat crucibles used for?
A1: They are mainly used for holding samples during calcination or metal melting where a flat and shallow geometry is required for even heating.
Q2: Can I order matching covers?
A2: Yes — covers for Al₂O₃ boat crucibles are available separately to minimise sample oxidation or liquid splashes.
Q3: Do I need to pre-dry the crucible before first use?
A3: Yes. Bake at 105 °C for 2 hours to remove moisture and avoid thermal shock.
Q4: What is the recommended heating rate?
A4: ≤ 5 °C /min below 1200 °C and ≤ 4 °C /min above 1200 °C for best durability.
Q5: Are these crucibles covered by warranty?
A5: As consumables, they are not returnable after use but manufacturing defects must be reported within 7 days of delivery.
