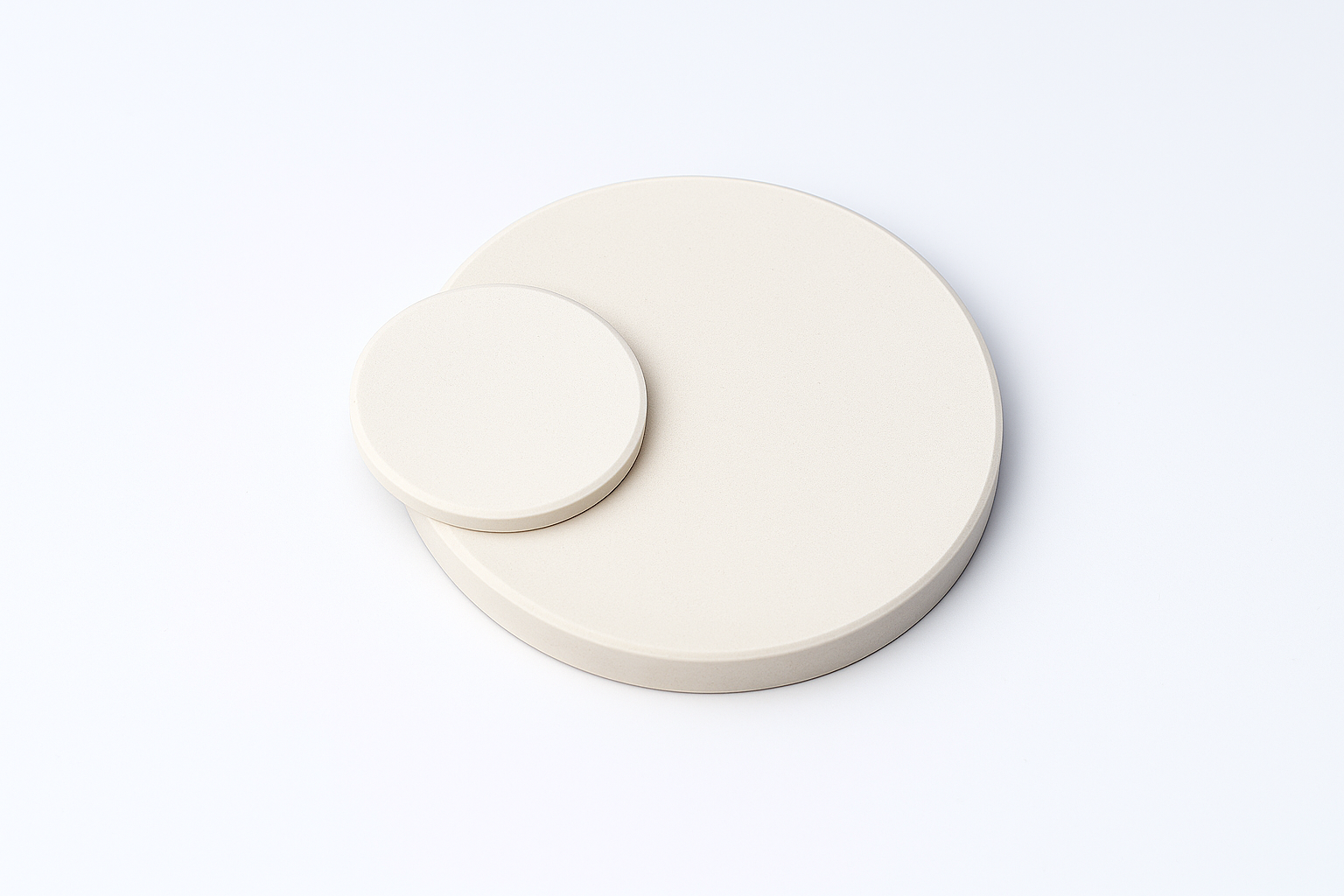

Cell Lab High-Purity Alumina (Al₂O₃) Disks [5 pcs / pack]

High-temperature ceramic disks for furnace, insulation and dielectric applications

General Description

Cell Lab high-purity alumina (Al₂O₃) disks are designed for use in high-temperature environments, providing exceptional resistance to heat, corrosion and electrical breakdown. With > 99 % purity, these disks offer high hardness, low thermal expansion, and excellent dielectric properties, making them ideal for tube furnaces, semiconductor processing, and ceramic R&D.

Each pack includes five disks precisely manufactured for dimensional stability and surface uniformity. Custom sizes and surface finishing (polished / unpolished) are available upon request.

Note – Alumina disks are consumable products and are not covered by warranty. Please inspect within one week of delivery; Cell Lab will only be responsible for manufacturing defects reported during this period.

Key Features

  • > 99 % Al₂O₃ purity for superior chemical and thermal stability.

  • Excellent electrical insulation ideal for high-voltage and furnace use.

  • High hardness and low expansion ensure mechanical integrity under thermal stress.

  • Operational up to 1600 °C in oxidising or inert atmospheres.

  • Customisable in diameter, thickness and surface finish (polished / unpolished).

Technical Specifications

Product No. Diameter (mm) Thickness (mm) Purity (Al₂O₃) Max Temperature (°C) Pack Size
CL0779 42 2 > 99 % 1600 °C 5 pcs / pack
CL0780 82 6 > 99 % 1600 °C 5 pcs / pack

Material: High-purity Al₂O₃
Colour: Ivory white
Form: Sintered ceramic disk
Surface Finish: Unpolished (Polishing optional upon request)

Applications & Industries

  • Tube and box furnace insulation

  • Semiconductor and vacuum processing

  • Dielectric and thermal barrier components

  • High-temperature sample supports and substrates

  • Advanced ceramic research and development

FAQ

Q1: What is the maximum service temperature?
A: Cell Lab Al₂O₃ disks can be used continuously up to 1600 °C in oxidising or inert environments.

Q2: Can the surface be polished?
A: Yes – both one-side and double-side polished finishes are available on request.

Q3: Are the dimensions customisable?
A: Absolutely – we can tailor diameter and thickness to your experimental requirements.

Q4: Is there a warranty for these disks?
A: They are consumables; only manufacturing defects reported within one week of delivery are covered.
