Cell Lab cylindrical Alumina (Al₂O₃) crucibles feature > 99 % purity and high thermal resistance up to 1600 °C, ideal for chemical calcination, metal casting and ceramic sample preparation in laboratories and industry.
Cell Lab cylindrical Alumina (Al₂O₃) crucibles feature > 99 % purity and high thermal resistance up to 1600 °C, ideal for chemical calcination, metal casting and ceramic sample preparation in laboratories and industry.

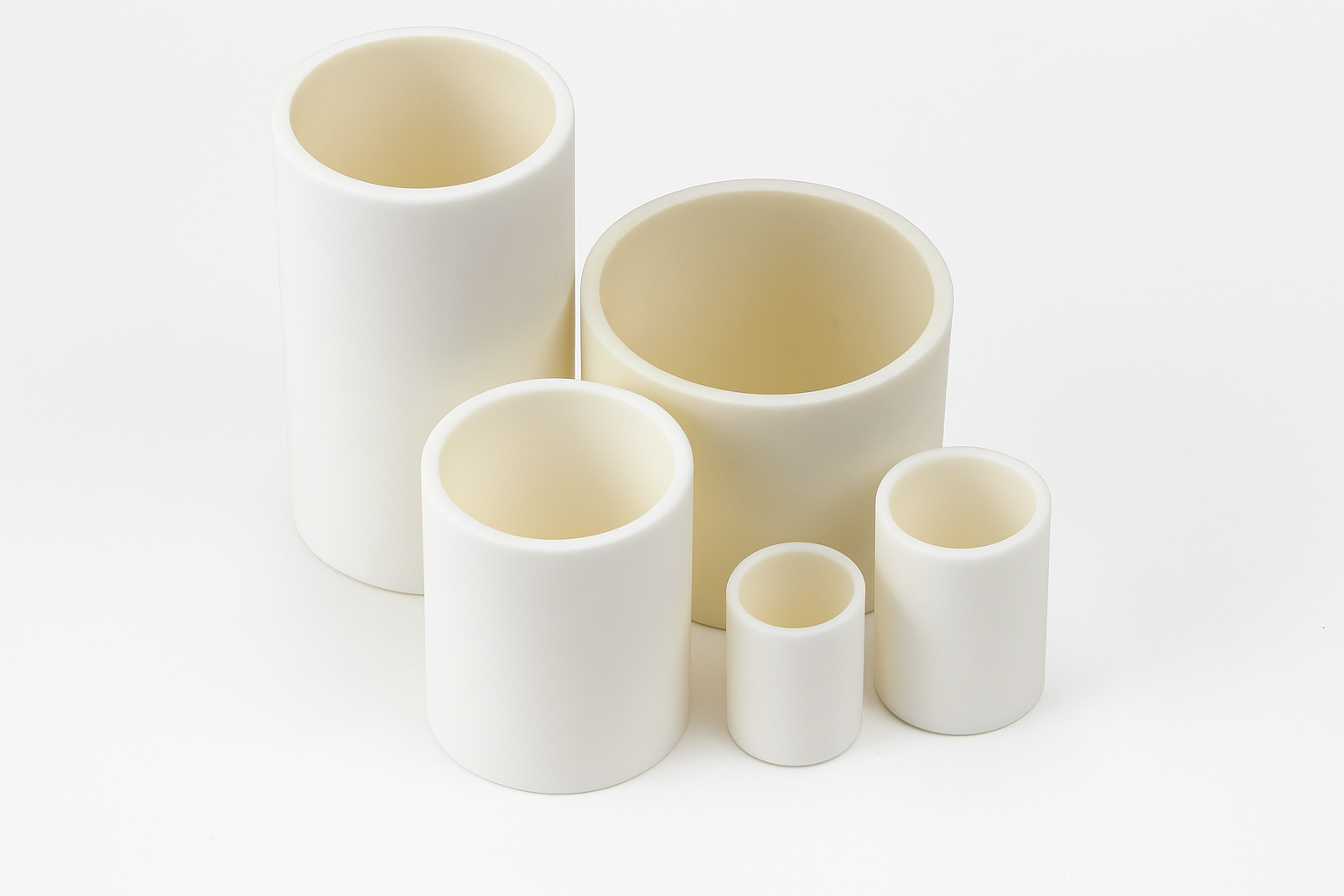

Cell Lab High-Purity Alumina (Al₂O₃) Cylindrical Crucible [5-175 mL]

Cell Lab High-Purity Alumina (Al₂O₃) Cylindrical Crucible [5-175 mL] Durable cylindrical crucibles for calcination, metal casting and ceramic sample preparation General Description Cell Lab high-purity Alumina (Al₂O₃) Cylindrical Crucibles are crafted for laboratories and industrial applications requiring excellent thermal and...
Vendor: Cell Lab
SKU: CL0817
Product type: Crucibles
£9.00
£9.00
Size: 5 mL Φ20x25 mm
Subtotal: £9.00
Cell Lab cylindrical Alumina (Al₂O₃) crucibles feature > 99 % purity and high thermal resistance up to 1600 °C, ideal for chemical calcination, metal casting and ceramic sample preparation in laboratories and industry.

Cell Lab High-Purity Alumina (Al₂O₃) Cylindrical Crucible [5-175 mL]

£9.00
Cell Lab cylindrical Alumina (Al₂O₃) crucibles feature > 99 % purity and high thermal resistance up to 1600 °C, ideal for chemical calcination, metal casting and ceramic sample preparation in laboratories and industry.

Cell Lab High-Purity Alumina (Al₂O₃) Cylindrical Crucible [5-175 mL]

£9.00
Size: 5 mL Φ20x25 mm
Description
Description
x

Cell Lab High-Purity Alumina (Al₂O₃) Cylindrical Crucible [5-175 mL]

Durable cylindrical crucibles for calcination, metal casting and ceramic sample preparation

General Description

Cell Lab high-purity Alumina (Al₂O₃) Cylindrical Crucibles are crafted for laboratories and industrial applications requiring excellent thermal and chemical stability. With melting points above 2000 °C and a maximum working temperature of 1600 °C, these crucibles are ideal for calcination, ceramic sintering, and metal casting processes.

The cylindrical design provides uniform heat distribution and superior mechanical strength. Optional lids are available for a controlled low-oxygen environment during high-temperature treatments.

Key Features

  • High thermal stability up to 1600 °C: Suitable for chemical calcination and powder sintering.

  • Excellent chemical resistance: Resists oxidation and corrosion from most reagents.

  • Cylindrical geometry: Ensures uniform temperature distribution and easy handling.

  • Customisable sizes: Dimensions and tolerances available upon request.

  • Optional covers: Enhance sealing and atmosphere control during processing.

Technical Specifications

Property Specification
Material High-purity Alumina (Al₂O₃)
Purity > 99 %
Maximum Temperature 1600 °C
Wall Thickness Standard 3 – 3.5 mm (approx.)
Form Cylindrical
Optional Accessories Matching Al₂O₃ cover (sold separately)
Warranty Consumable item – report manufacturing defects within 1 week of delivery

Available Models and Dimensions

SKU No.

Dimensions (Ø × H)

Capacity

Purity

Max Temp

CL0817

Φ 20 × 25 mm

5 mL

> 99 %

1600 °C

CL0818

Φ 25 × 30 mm

10 mL

CL0819

Φ 45 × 45 mm

50 mL

CL0820

Φ 55 × 55 mm

100 mL

CL0821

Φ 55 × 100 mm

175 mL

 Custom tolerances and geometries available upon request.

Applications & Industries

  • Chemical calcination and thermal decomposition

  • Ceramic material sintering and powder processing

  • Metal casting and alloy melting

  • Laboratory and industrial research furnaces

  • High-temperature material characterisation

FAQ

Q1: What is the difference between cylindrical and high-form crucibles?
A1: Cylindrical crucibles offer a uniform geometry ideal for stable heat transfer, while high-form types are deeper for long calcination cycles with less spillage.

Q2: Should I pre-dry the crucible before first use?
A2: Yes. Place in an oven at 105 °C for 2 hours to remove moisture and avoid thermal shock.

Q3: Can these crucibles be used with molten metals?
A3: Yes — they are ideal for non-ferrous metal melting and oxide formation studies below 1600 °C.

Q4: What heating rate is recommended?
A4: Do not exceed 5 °C/min below 1200 °C or 4 °C/min above 1200 °C to prevent cracking.

Q5: Are custom sizes available?
A5: Yes — Cell Lab provides customised dimensions and matching lids upon request for research and industrial use.
