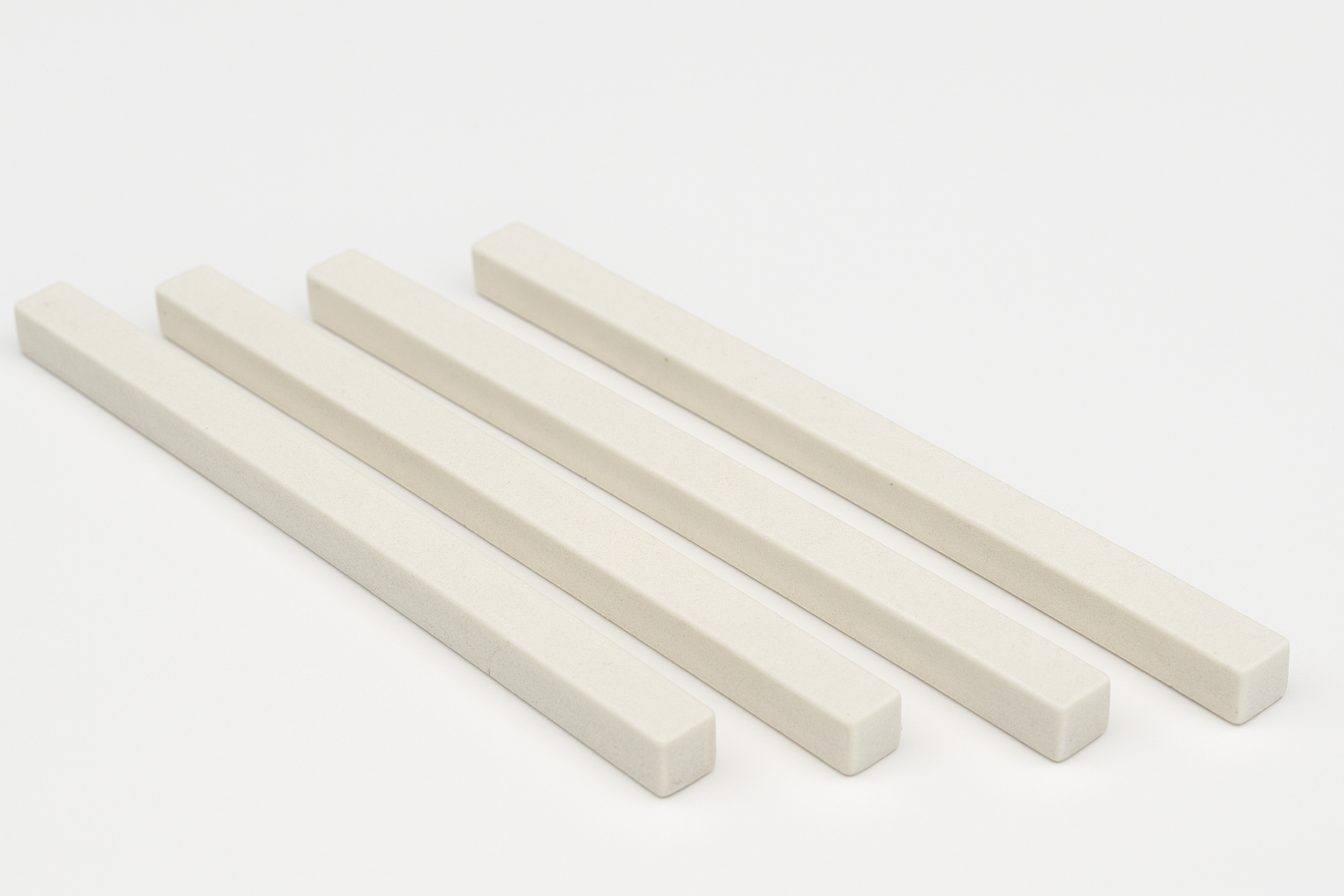

Cell Lab High-Purity Alumina (Al₂O₃) Bars [3.2–12.7 mm Height Options]

High-temperature ceramic bars for semiconductor, photolithography and CVD applications

General Description

Cell Lab high-purity alumina (Al₂O₃) bars are engineered for exceptional performance under extreme thermal and chemical environments. With > 99 % purity, these bars offer high hardness, superior electrical insulation, low thermal expansion, and excellent corrosion resistance.

They are widely used in the manufacturing of CVD components, ion implant systems, photolithography equipment, and semiconductor processing. Each bar is precisely sintered to maintain tight dimensional tolerance and outstanding mechanical stability under high temperatures up to 1600 °C.

Note – Alumina bars are consumable products and not covered by warranty. Please inspect within one week of delivery; Cell Lab will only be responsible for manufacturing defects reported during this period.

Key Features

  • High purity (> 99 %) Al₂O₃ for maximum thermal and chemical stability.

  • Excellent electrical insulation – ideal for semiconductor and vacuum applications.

  • Low thermal expansion and superior mechanical strength.

  • High temperature resistance (≤ 1600 °C) for reliable use in extreme conditions.

  • Custom dimensions available – height, width and length tailored to your requirements.

Technical Specifications

Product No.

Height (mm)

Width (mm)

Length (mm)

Purity (Al₂O₃)

Max Temperature

Material

Form

Customisation

CL0775

3.2

3.2

152.4

> 99 %

1600 °C

High-purity Al₂O₃

Rectangular solid bar

Dimensions and tolerances available upon request

CL0776

4

4

CL0777

6.4

6.4

CL0778

12.7

6.4

Applications & Industries

  • Semiconductor manufacturing components

  • Chemical vapour deposition (CVD) systems

  • Ion implantation and photolithography equipment

  • High-temperature ceramic supports and fixtures

  • Advanced materials and thermal engineering R&D

FAQ

Q1: What temperature can Cell Lab alumina bars withstand?
A: They are stable up to 1600 °C in oxidising or inert atmospheres.

Q2: Can the dimensions be customised?
A: Yes – we can produce custom heights, widths and lengths with tight tolerances upon request.

Q3: Are these bars suitable for semiconductor processes?
A: Absolutely – they offer high purity and electrical insulation for CVD and cleanroom applications.

Q4: Are alumina bars covered by warranty?
A: No, they are consumables; please report any manufacturing defects within one week of delivery.
